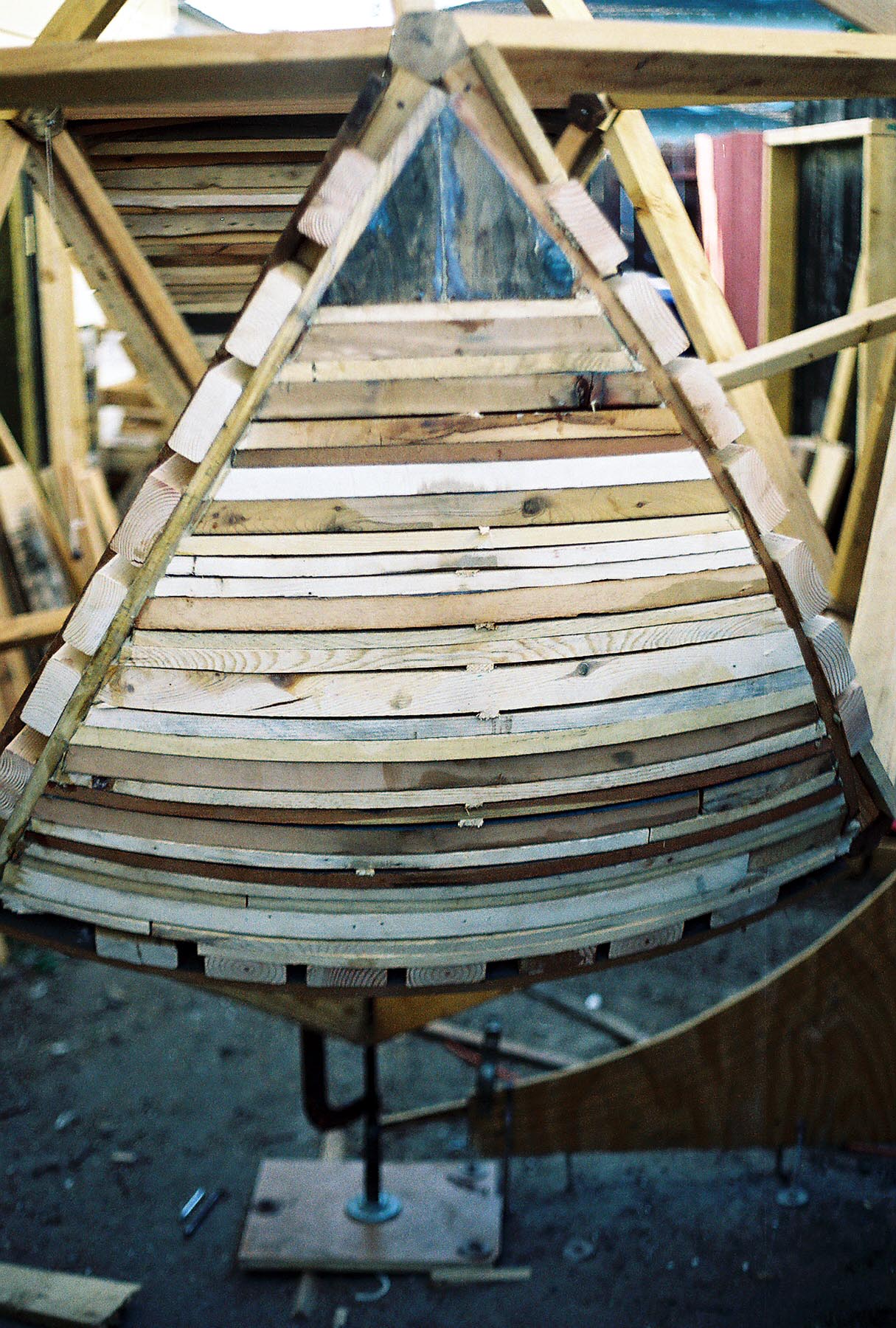

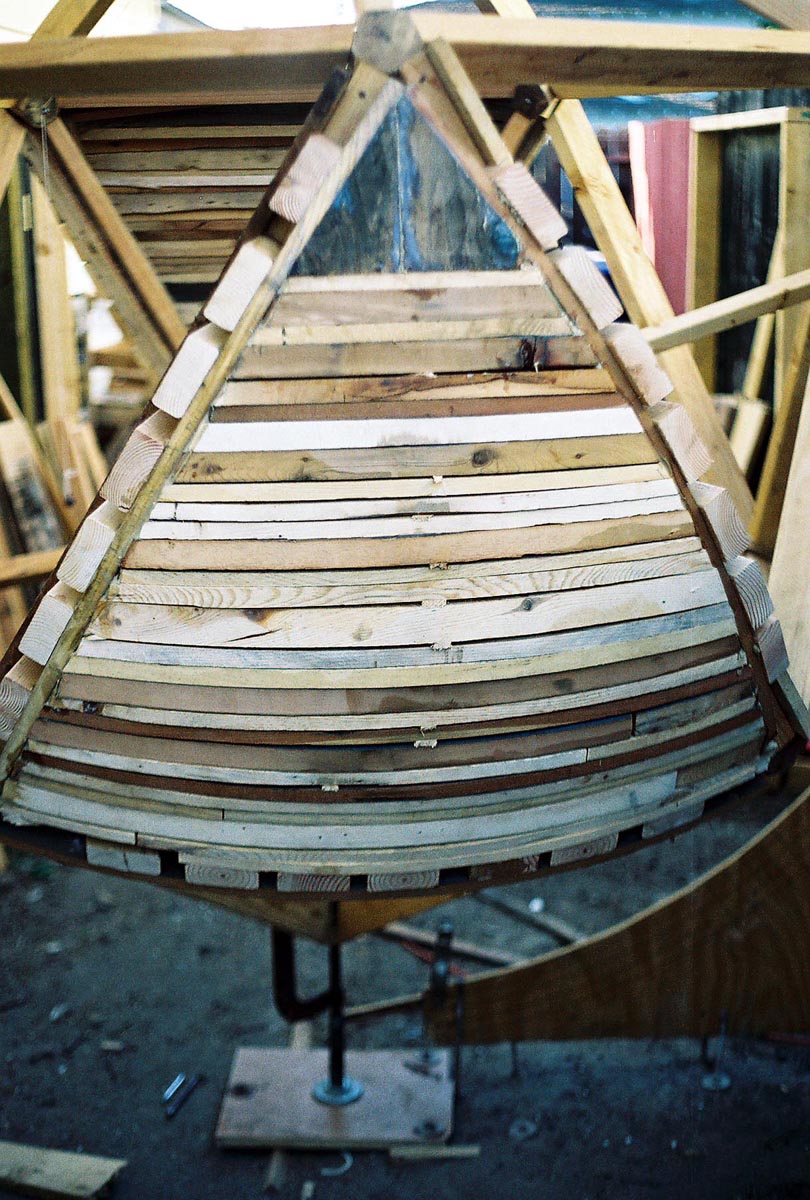

Beginning side 2 of 20.
med | big | huge
med | big | huge
med | big | huge

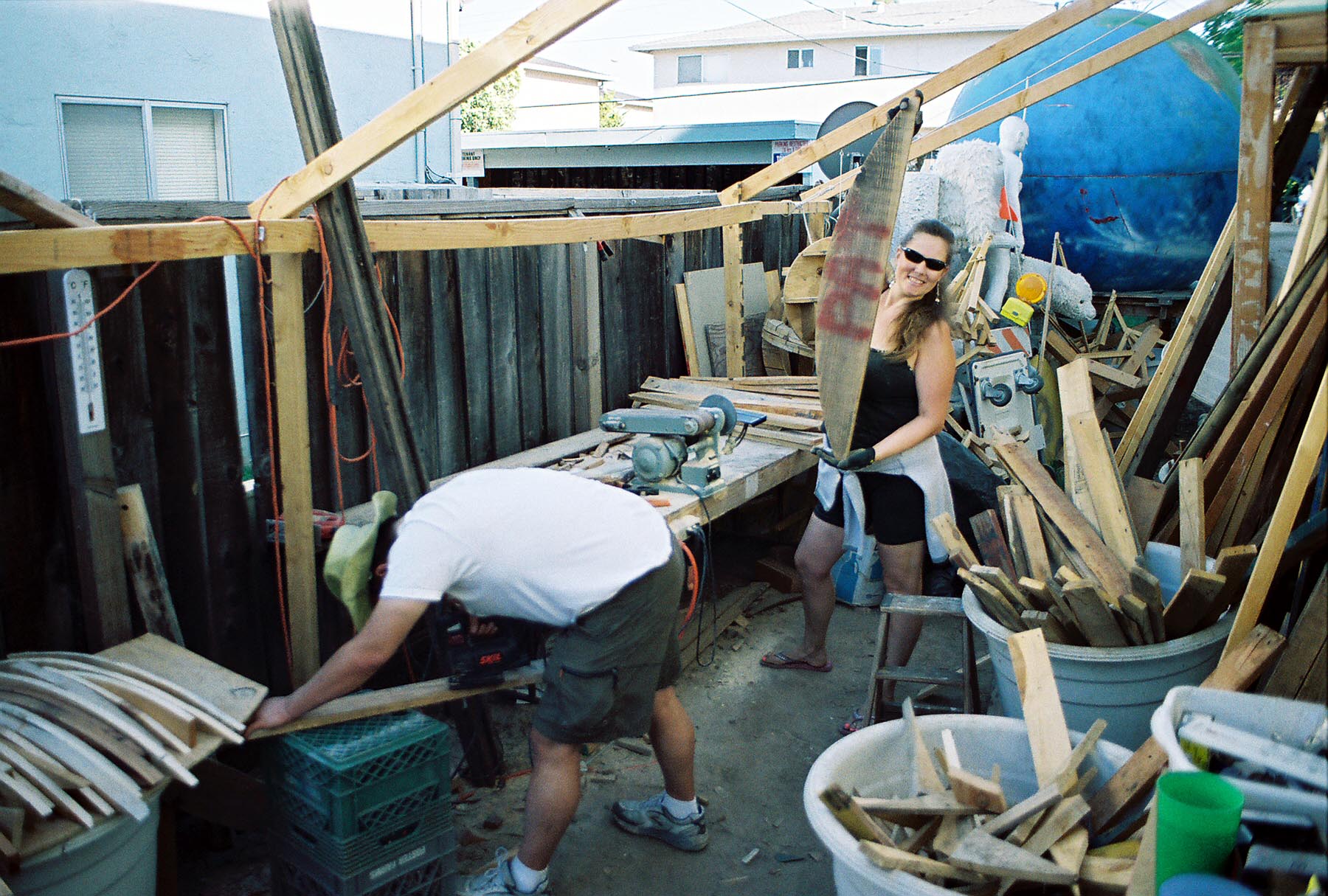

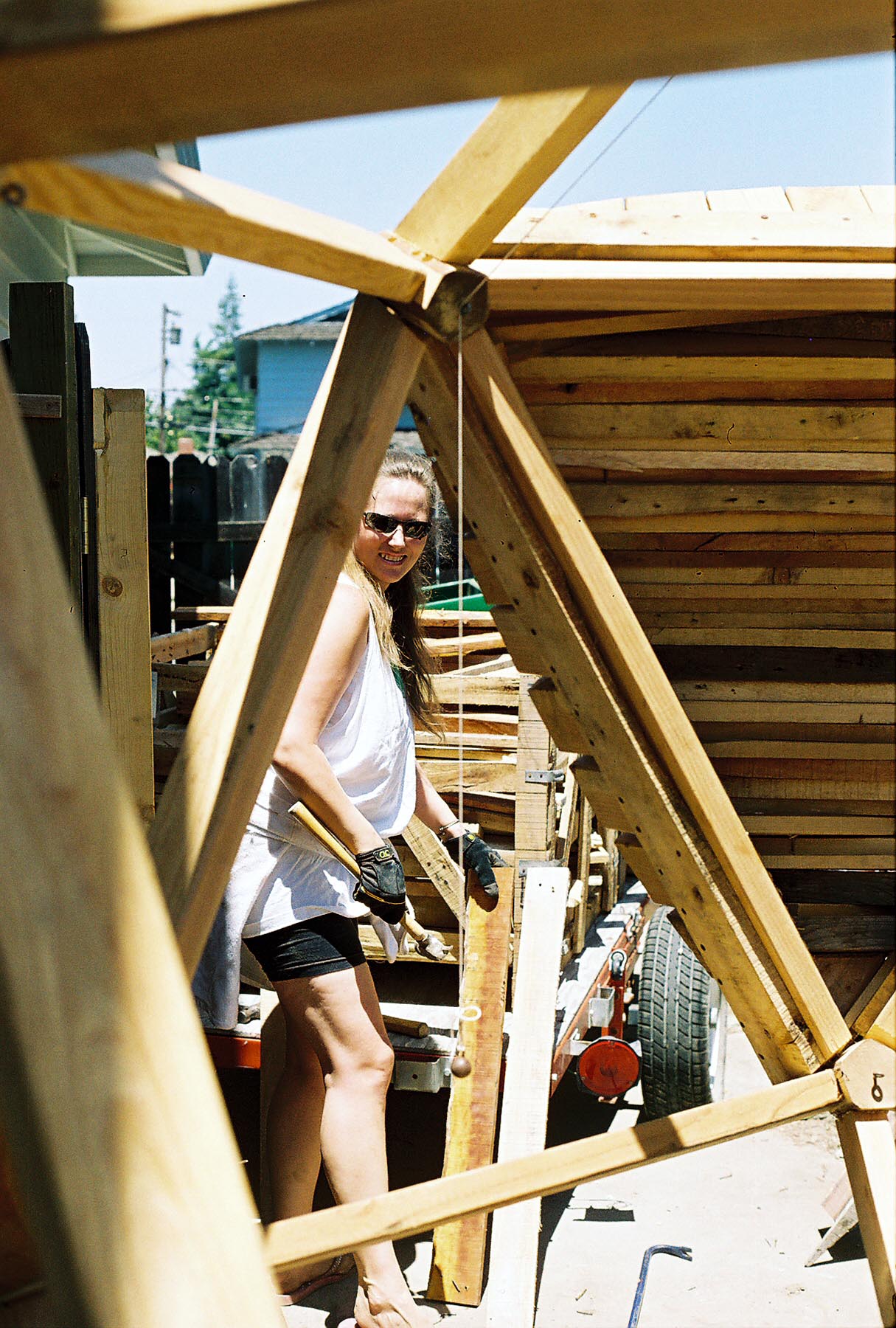

I put out a call for help on the local burningman list and several people have responded and helped greatly. This is Elecktra pulling nails.
med | big | huge
med | big | huge
and Elecktra marking boards.
med | big | huge

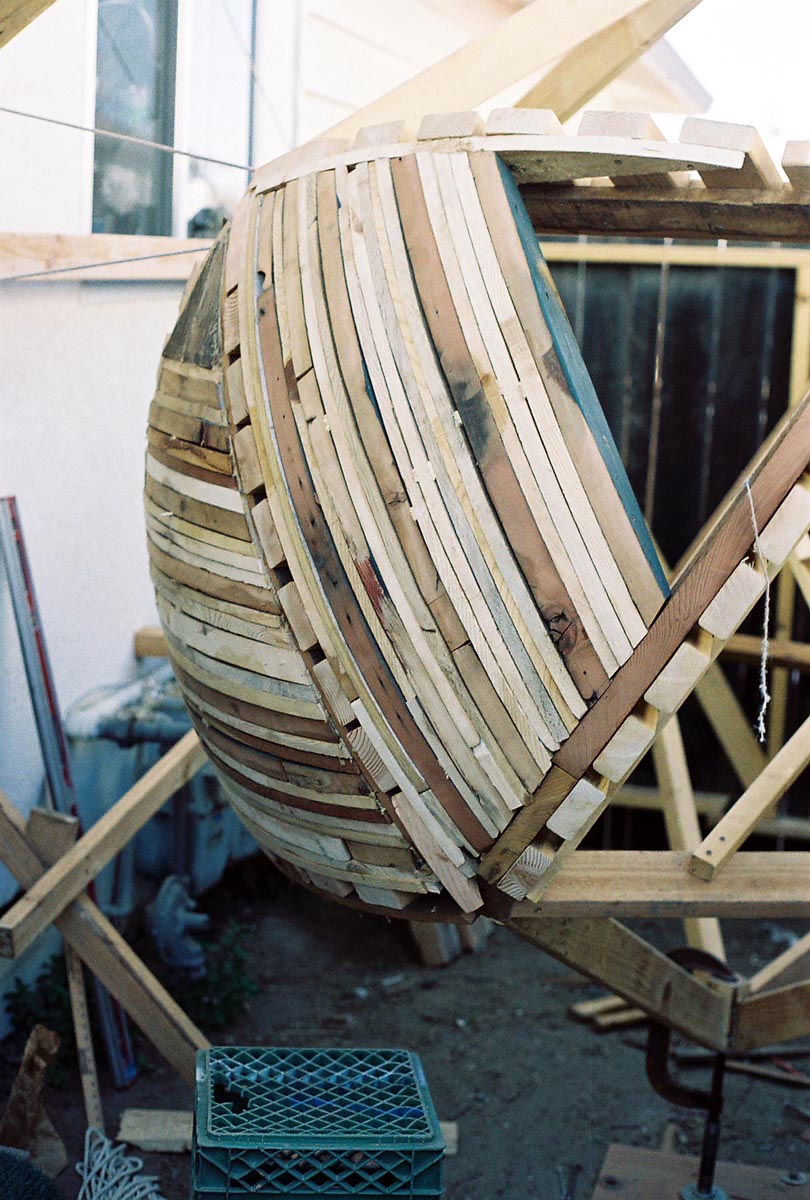

This side is going faster because I'm working from the bottom up. All the screws are pointerd down instead of me pushing upward to screw them in. Saves a lot of time and effort over that first side I did!
med | big | huge
med | big | huge
med | big | huge

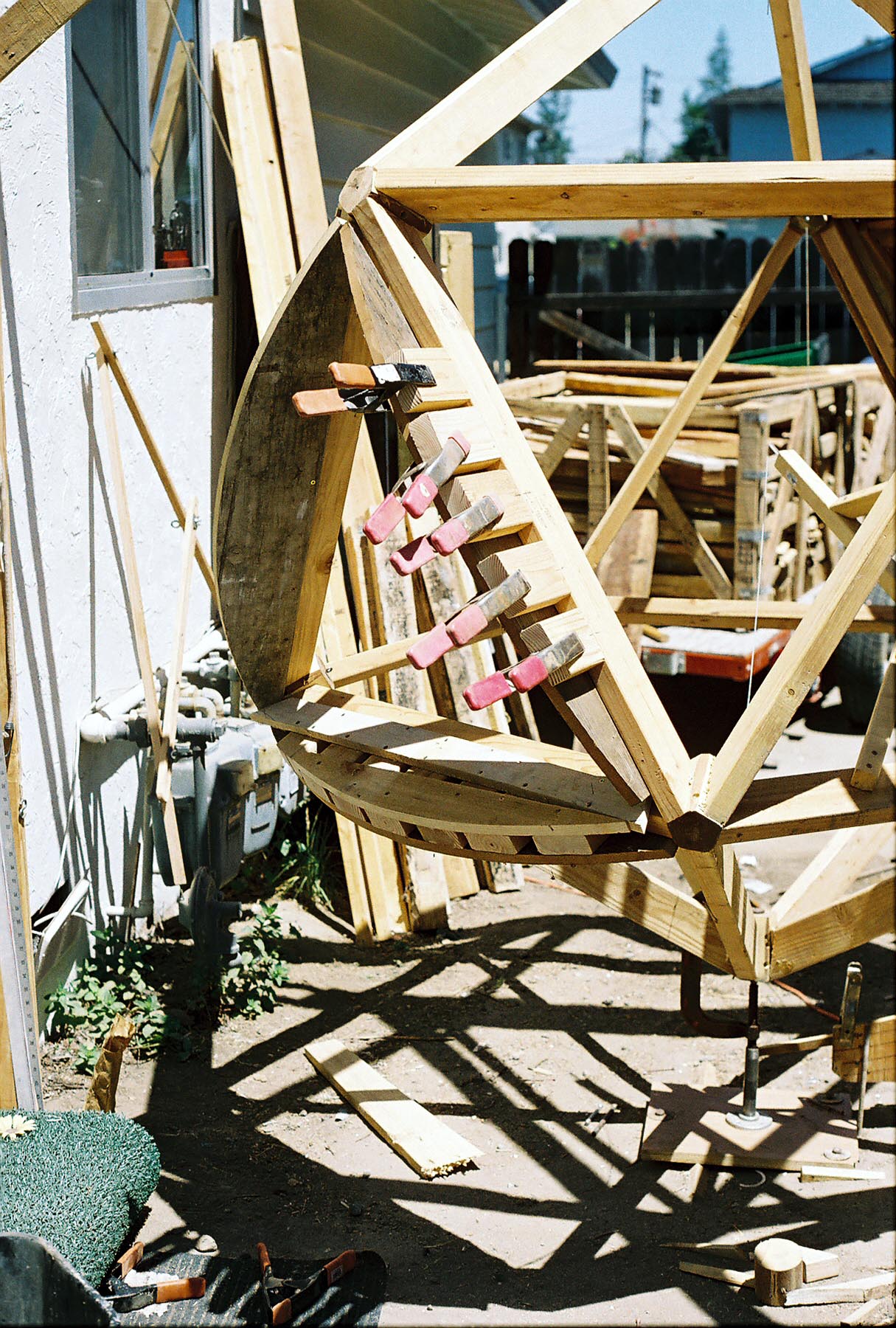

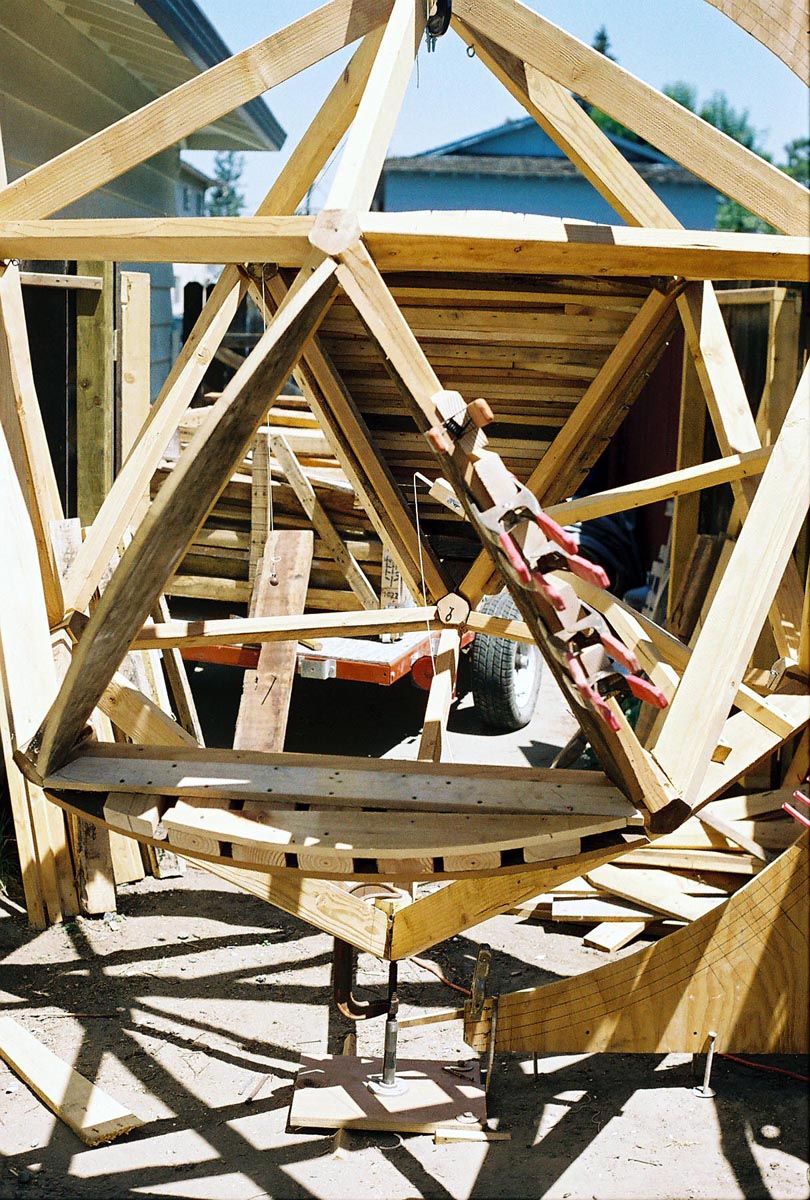

Side 3 beginning. Making the 'frame' into which the rest of the boards are stacked takes the most time.
med | big | huge

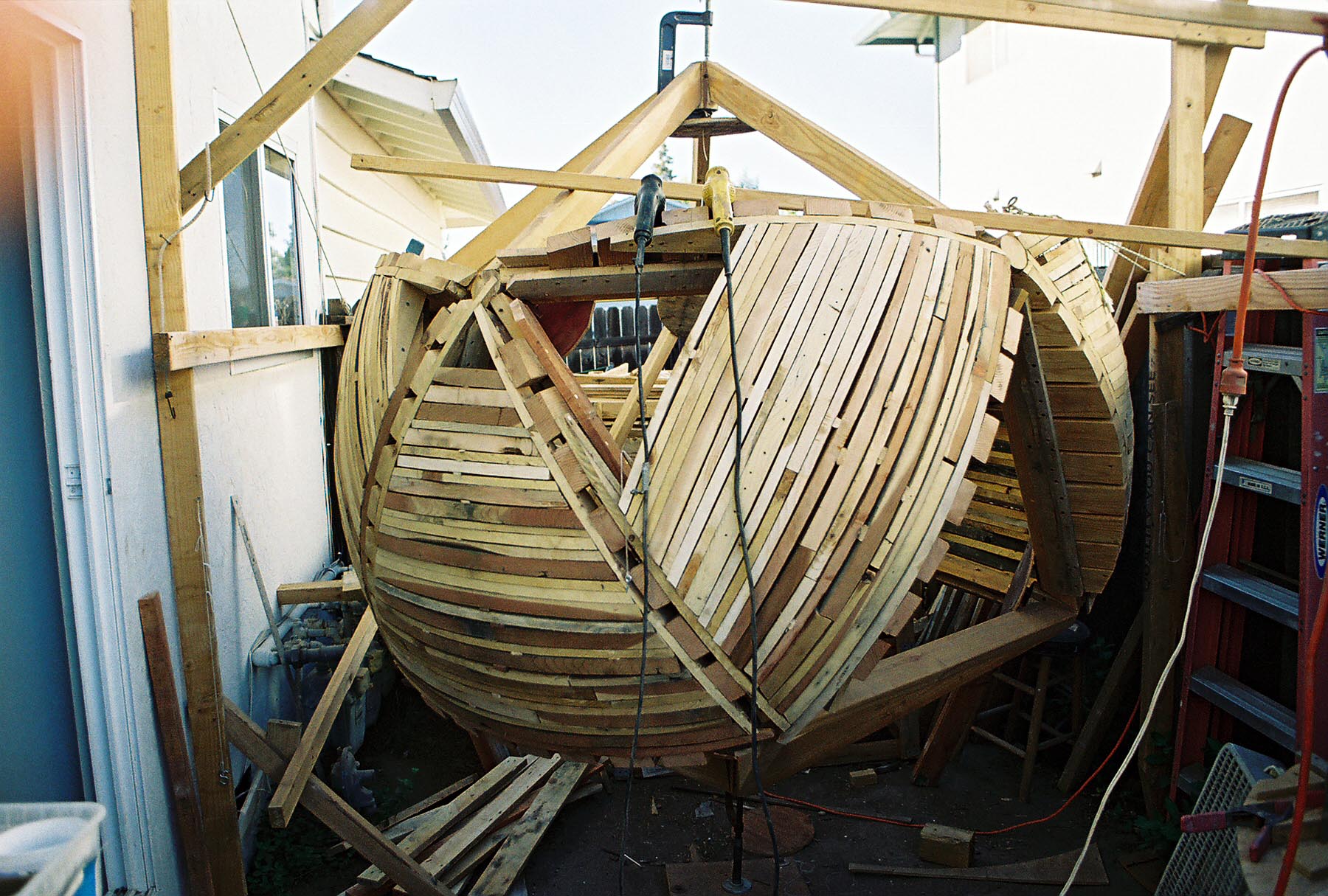

Lesson learned, rather than add wood from top down, I chose to go diagonally this time.
med | big | huge

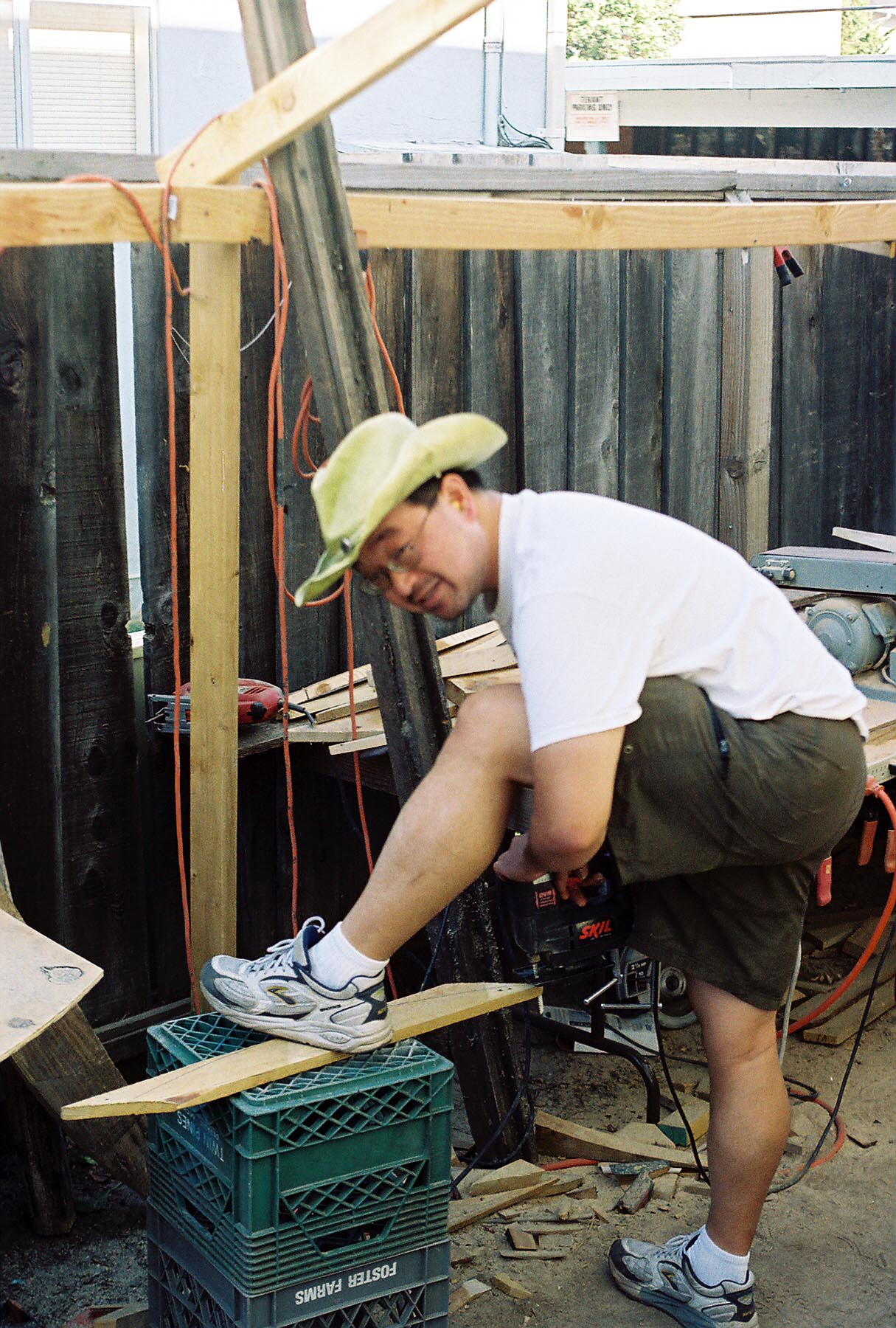

Jason cutting arcs using the under the leg technique.
med | big | huge

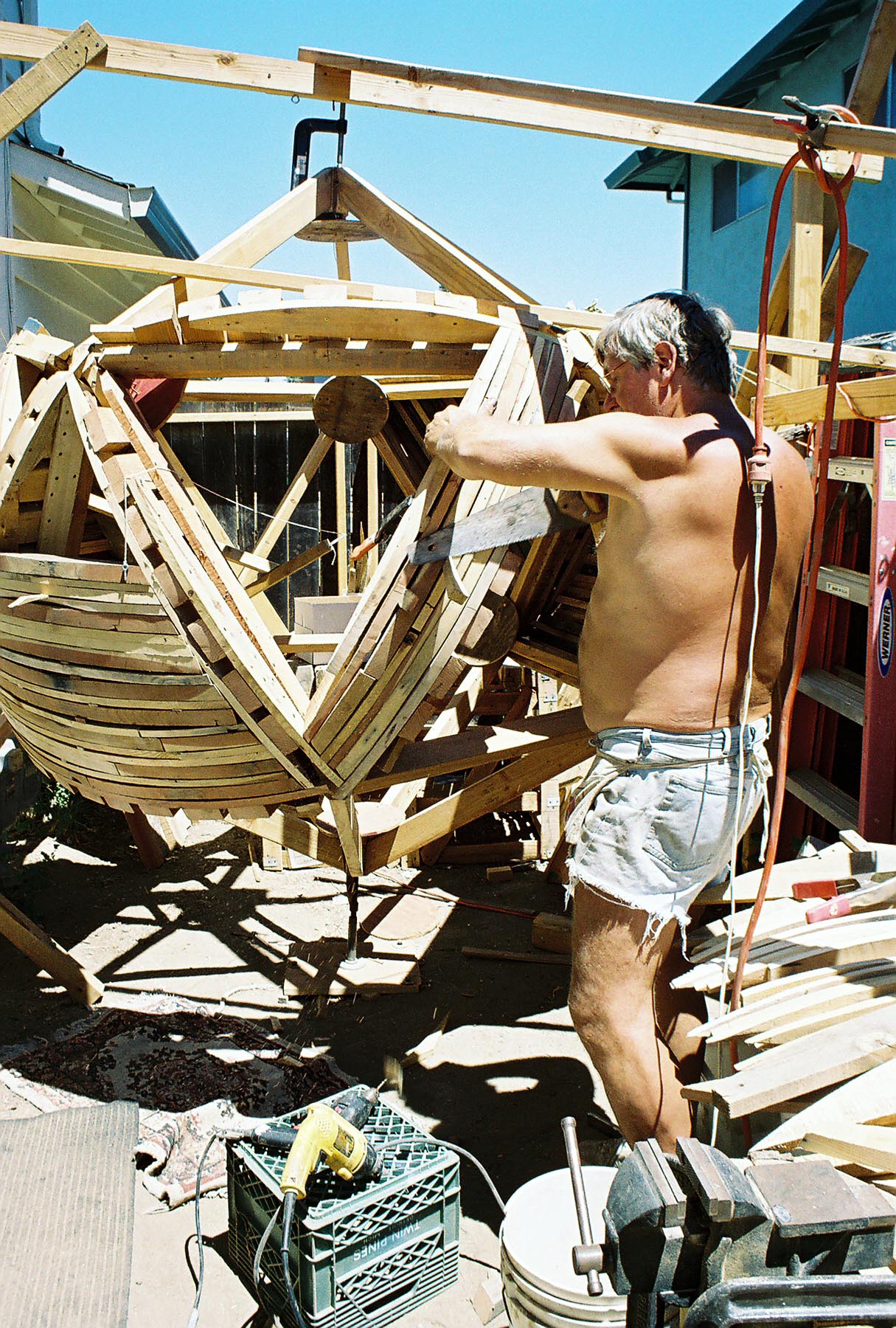

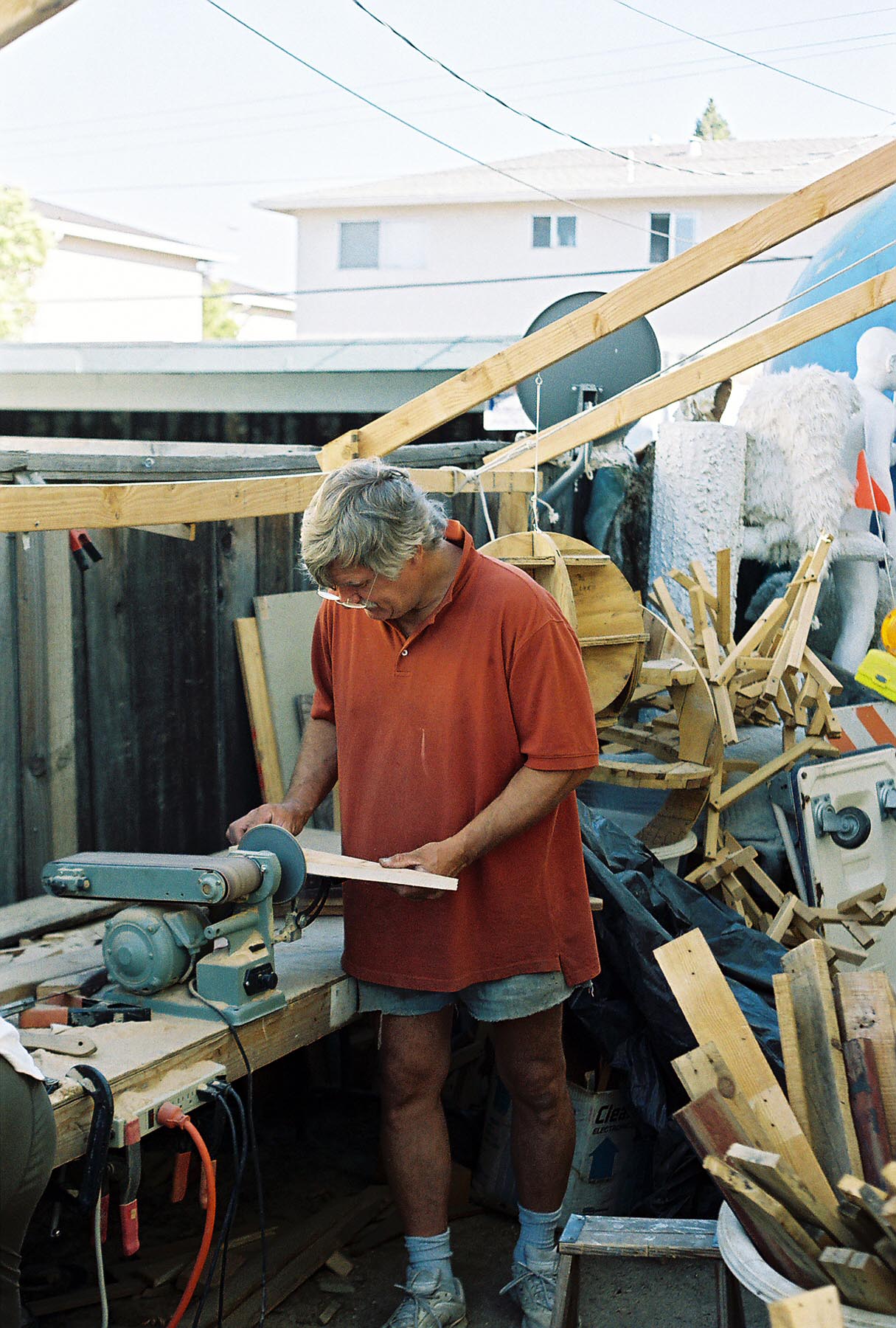

Me sanding the edges of the arcs of wood.
A little math-each arc has a radius of 41". By making sure each arc points right at the center of the sphere, each is part of a great circle and therefore has the same shape. If I didn't point then thus, each would have to be measured seperately and have a different radius.h6>med | big | huge

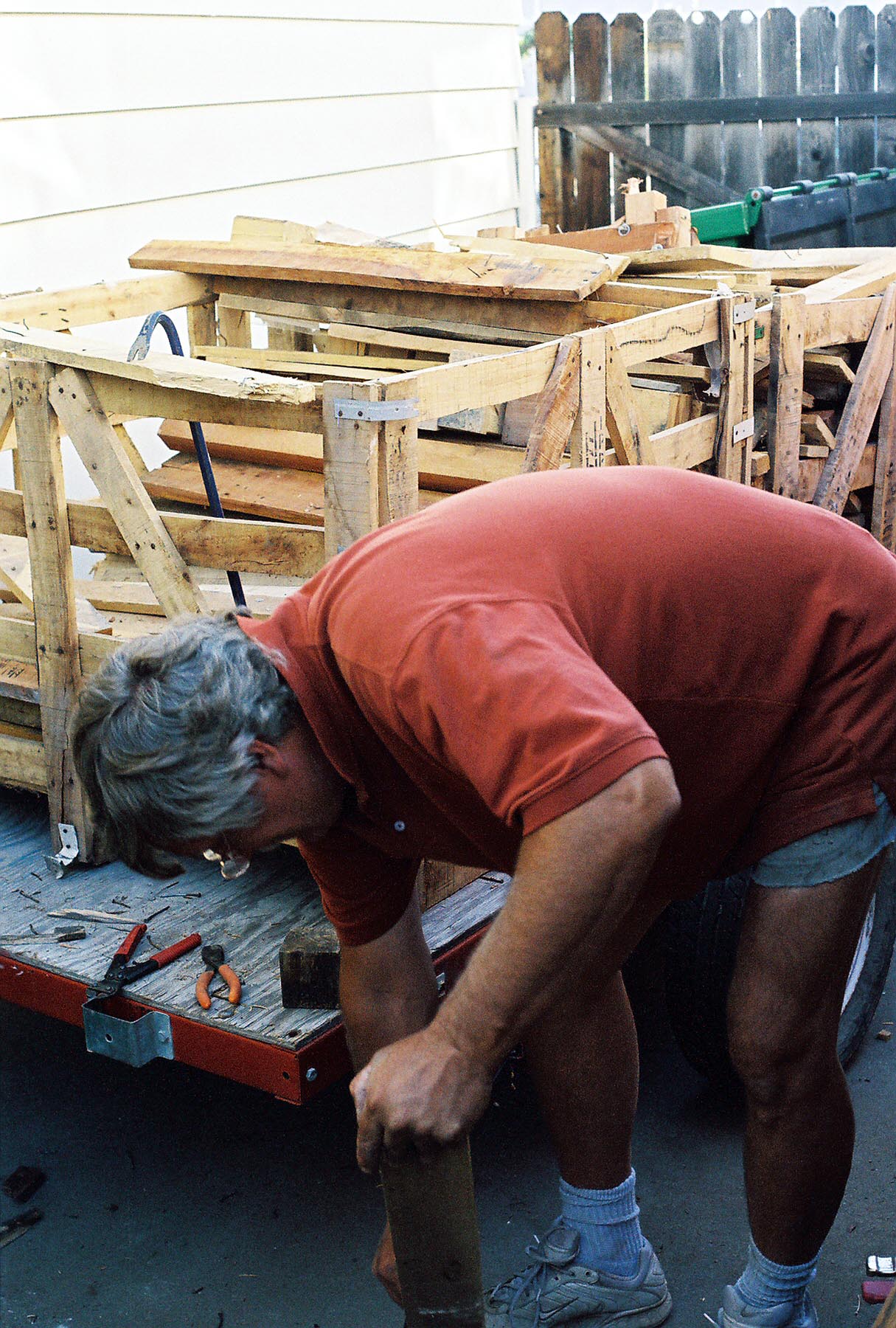

Pulling nails! The wood is free and left over from shipping marble and granite sheets, but comes in random sizes and filled with splinters and nails.
med | big | huge
Elecktra with the master arc template.
med | big | huge

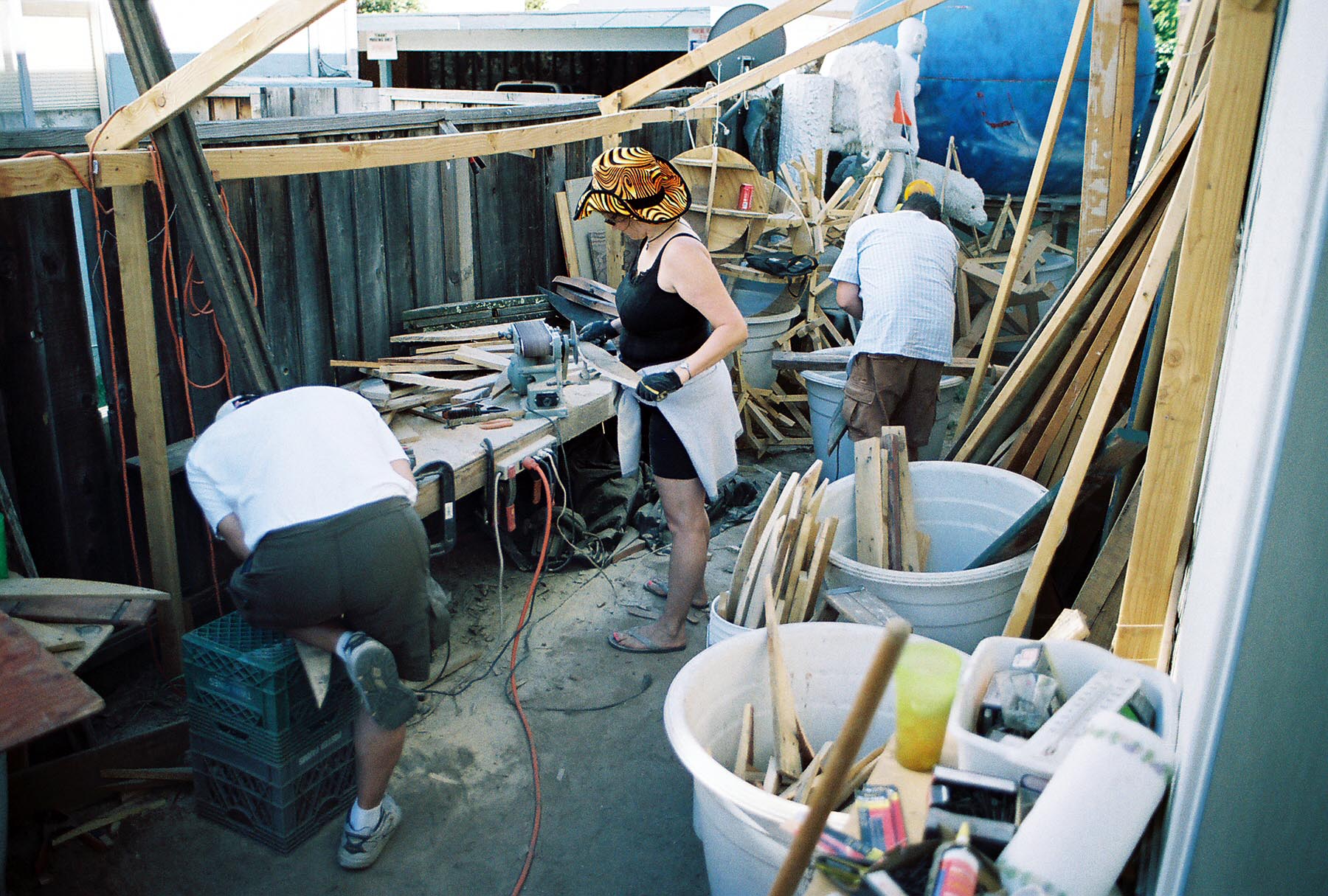

Jason, Elecktra and Lance working away.
med | big | huge

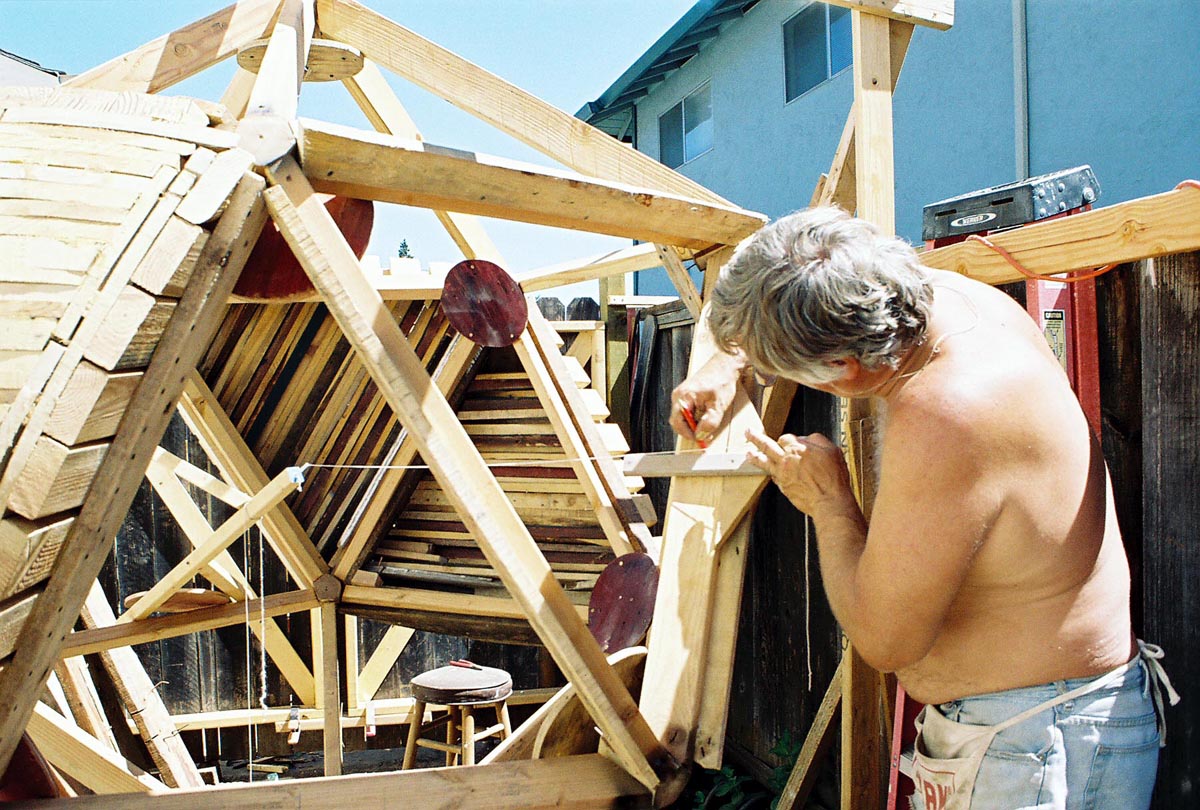

Me measuring one of the standing 2x4s that is attached to the main struts as part of the frame. The string starts at the exact center of the ball and helps both with measuring how far away an arc is from the center and also in pointing the arc right toward the center-thus assuring it is part of a great circle.
med | big | huge

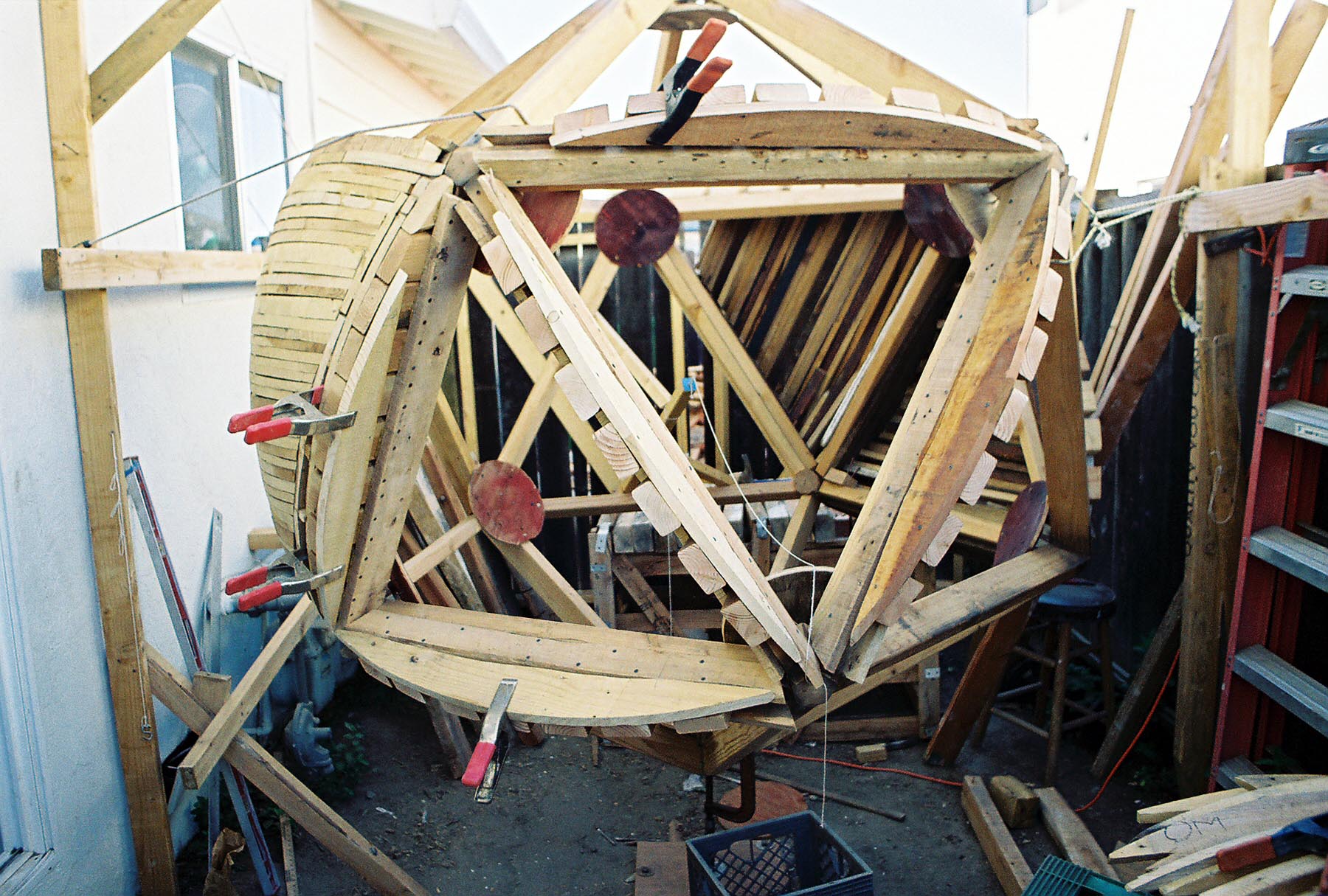

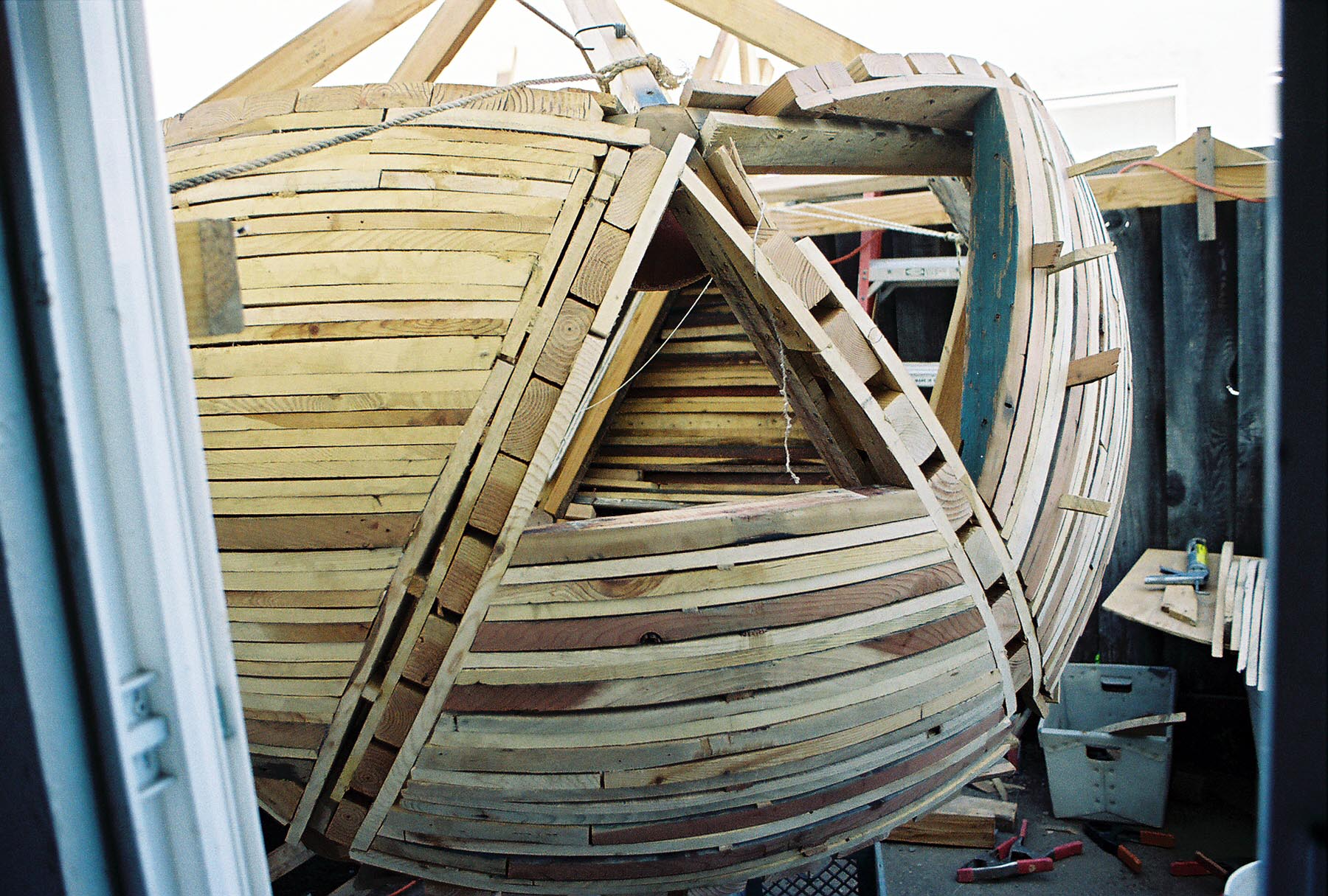

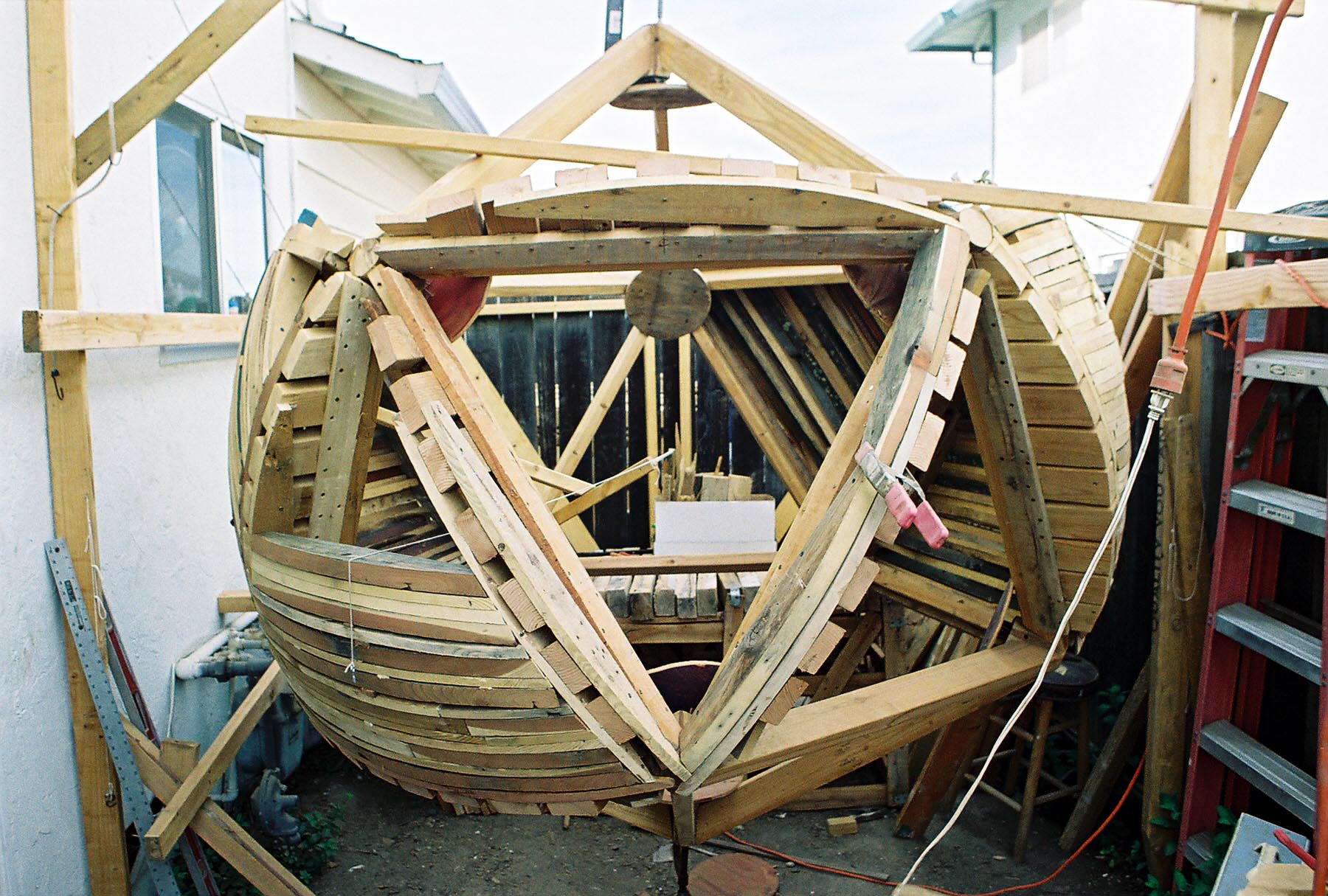

Starting sides 4 & 5.
med | big | huge

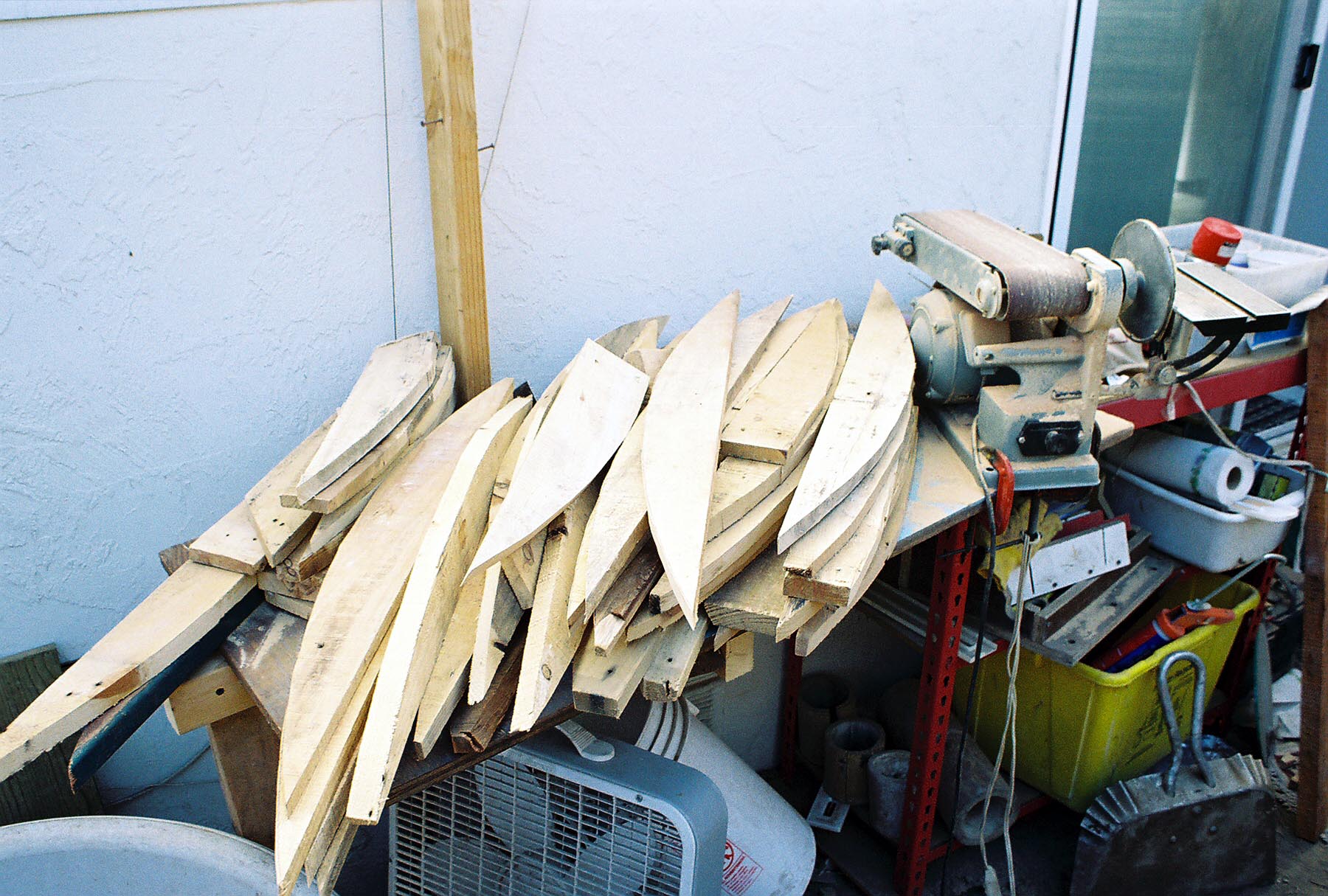

Overview of the arcs that have been cut and sanded. Over 1/3 of a mile of wood will be cut and sanded by the time I'm done.
med | big | huge
Piles of wood awaiting marking or cutting or sanding.
med | big | huge
med | big | huge
med | big | huge
med | big | huge

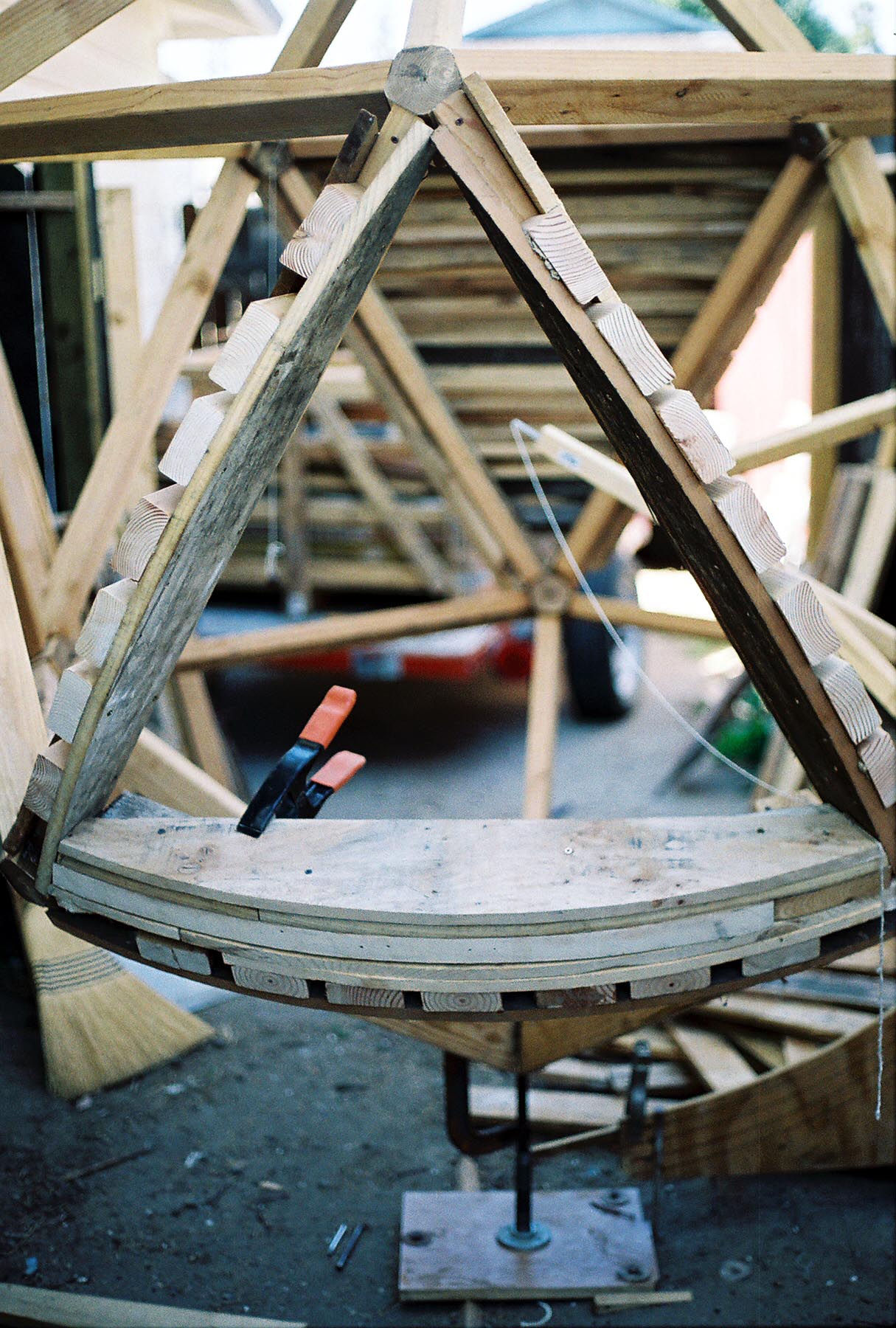

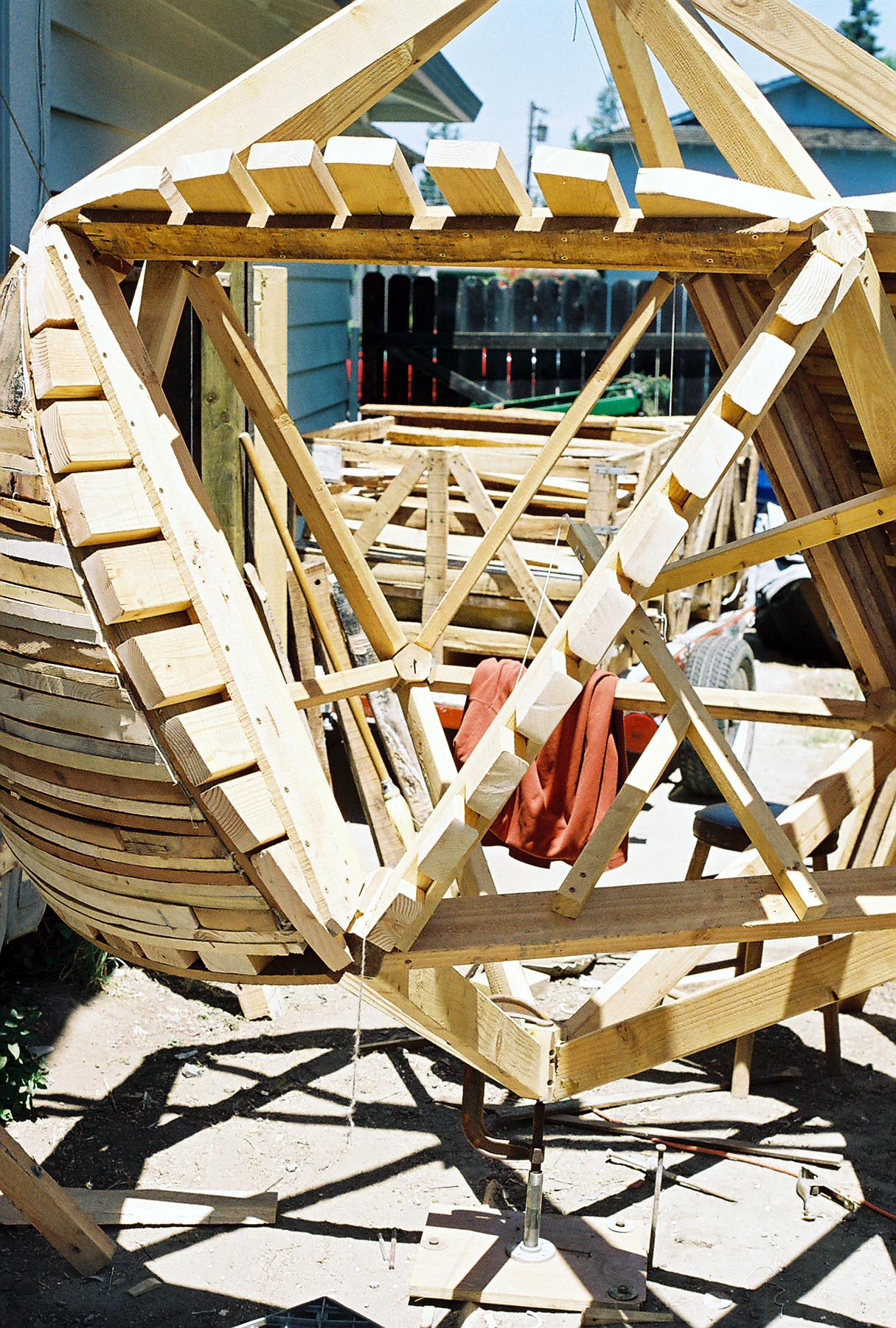

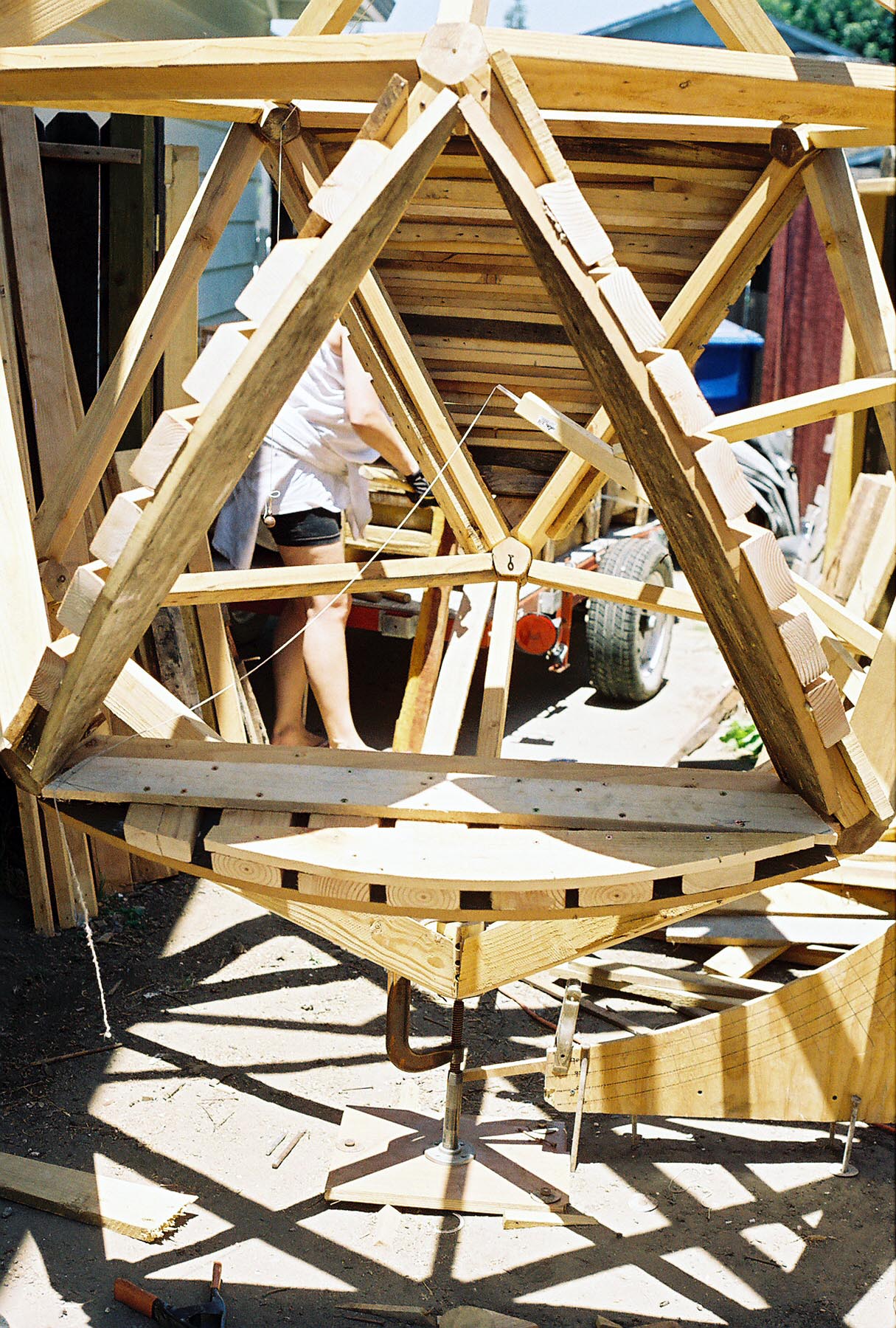

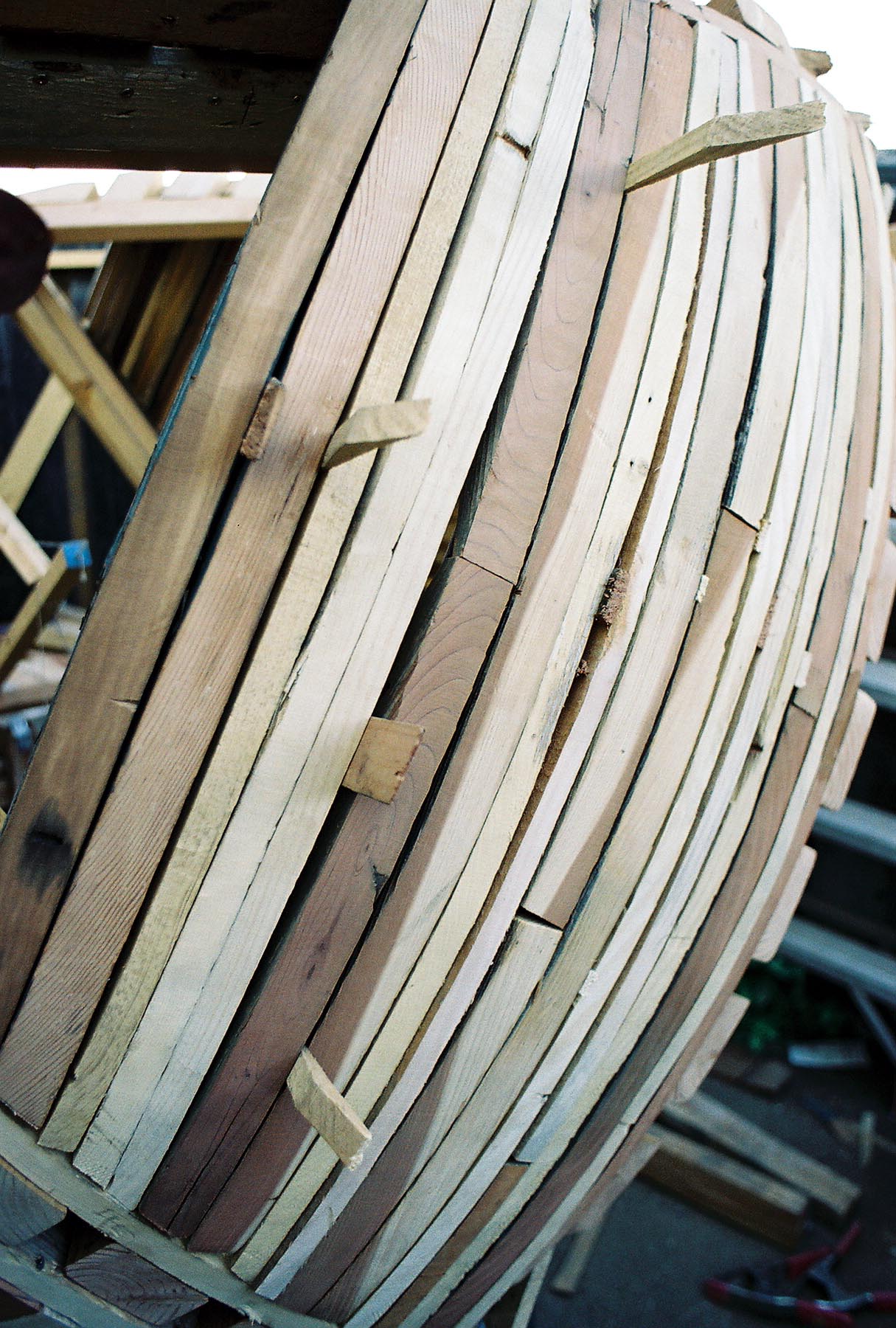

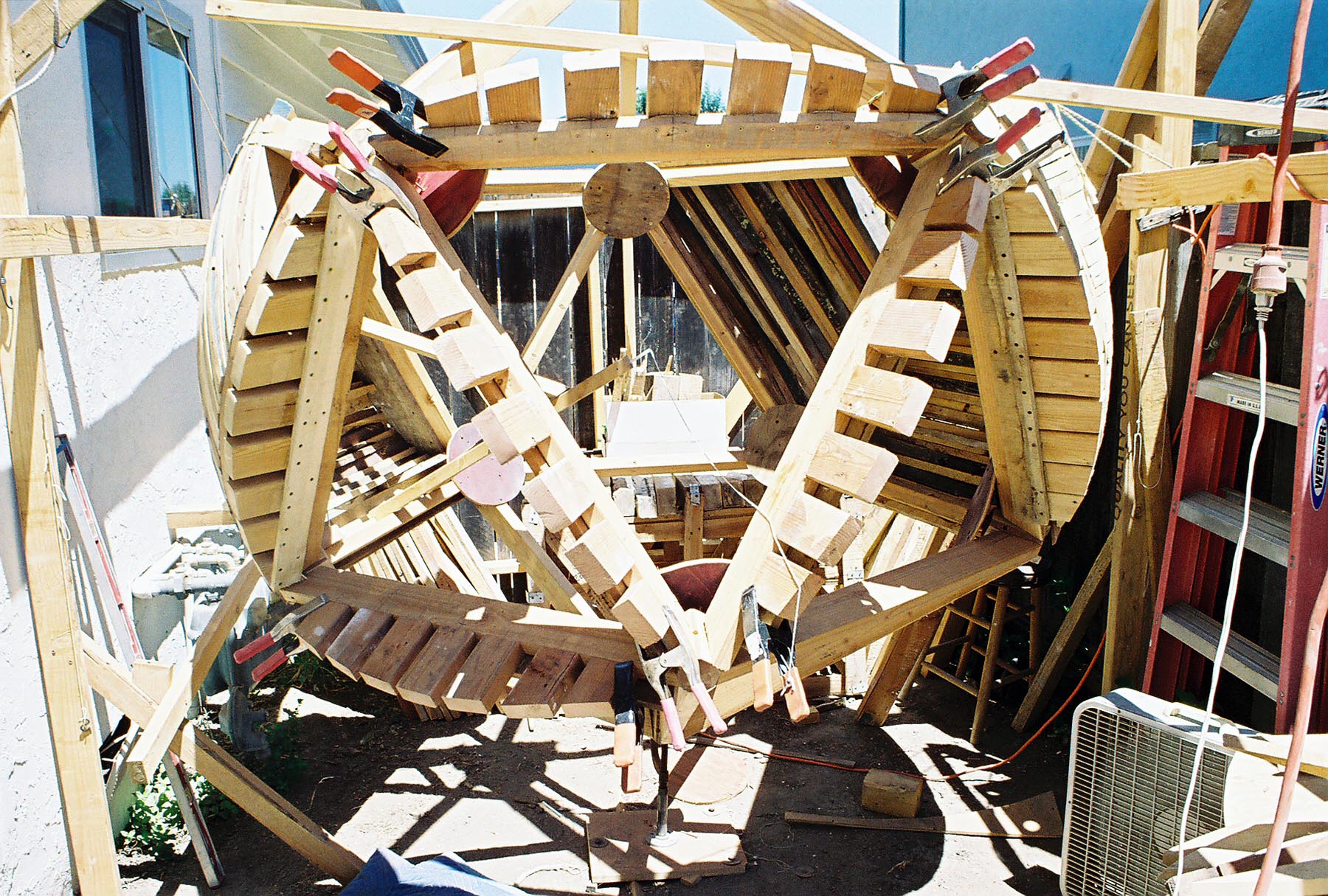

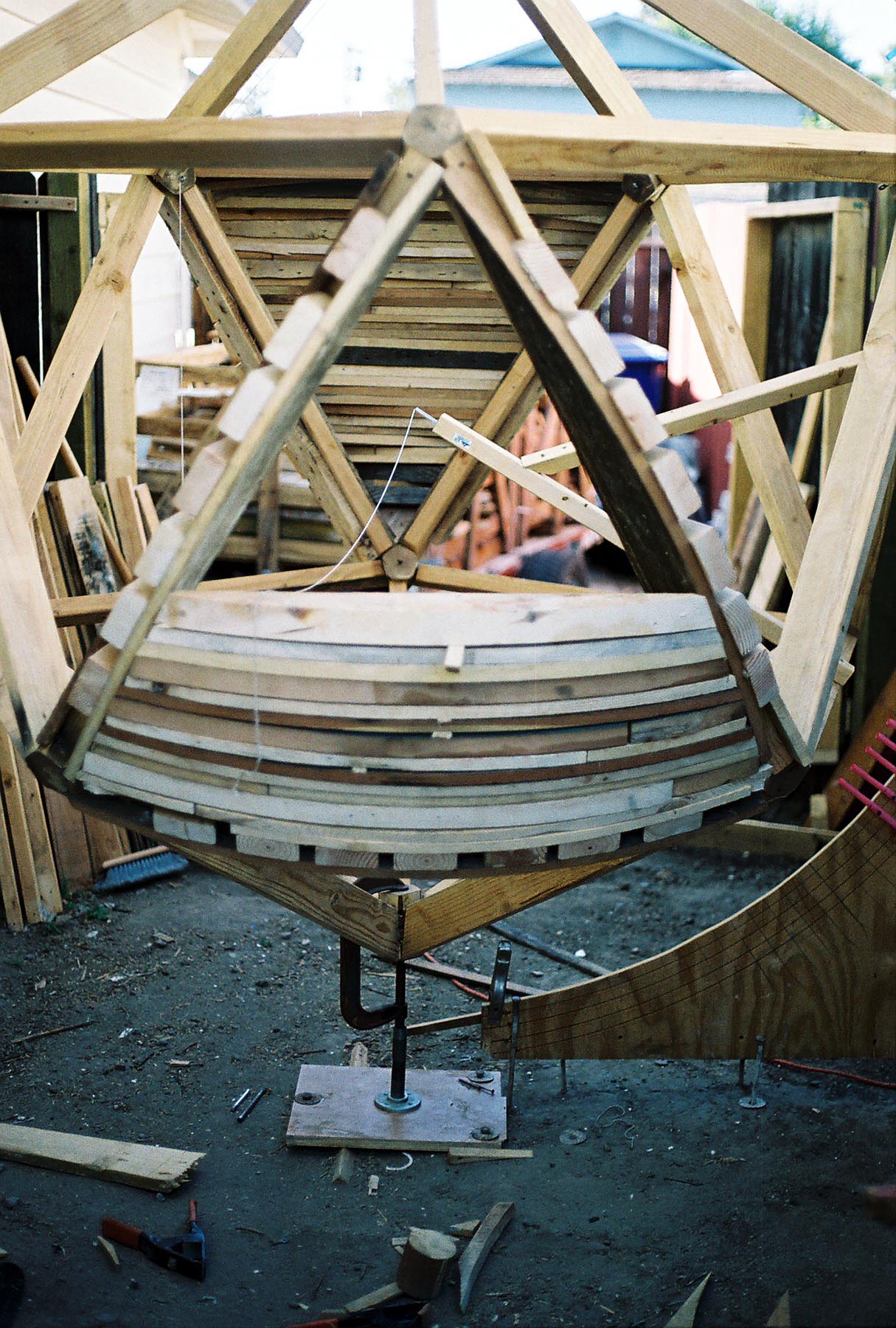

The wedges sticking out are used to point the arcs at the center as the wood is stacked.
med | big | huge
med | big | huge
med | big | huge
med | big | huge
med | big | huge
med | big | huge
med | big | huge
med | big | huge

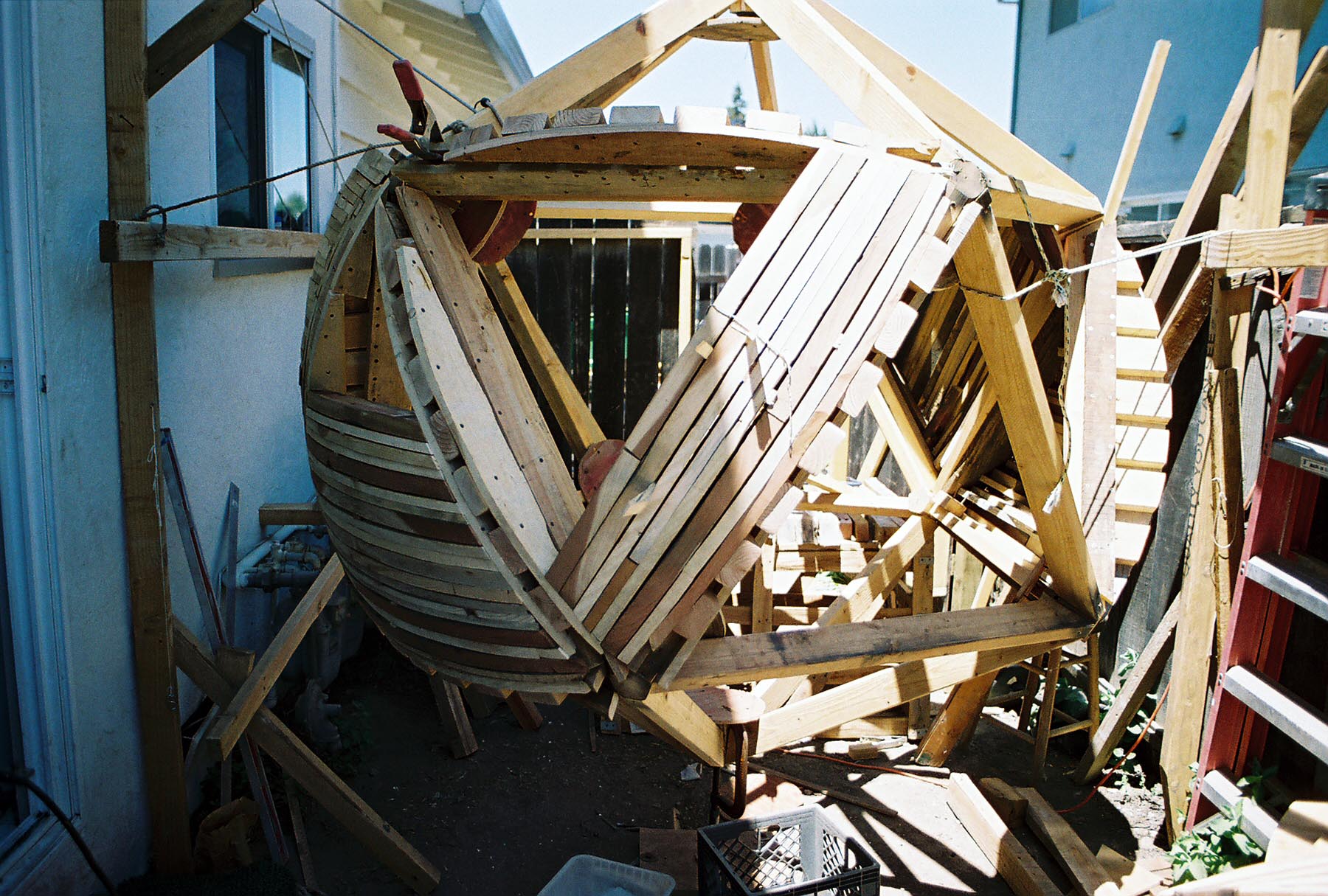

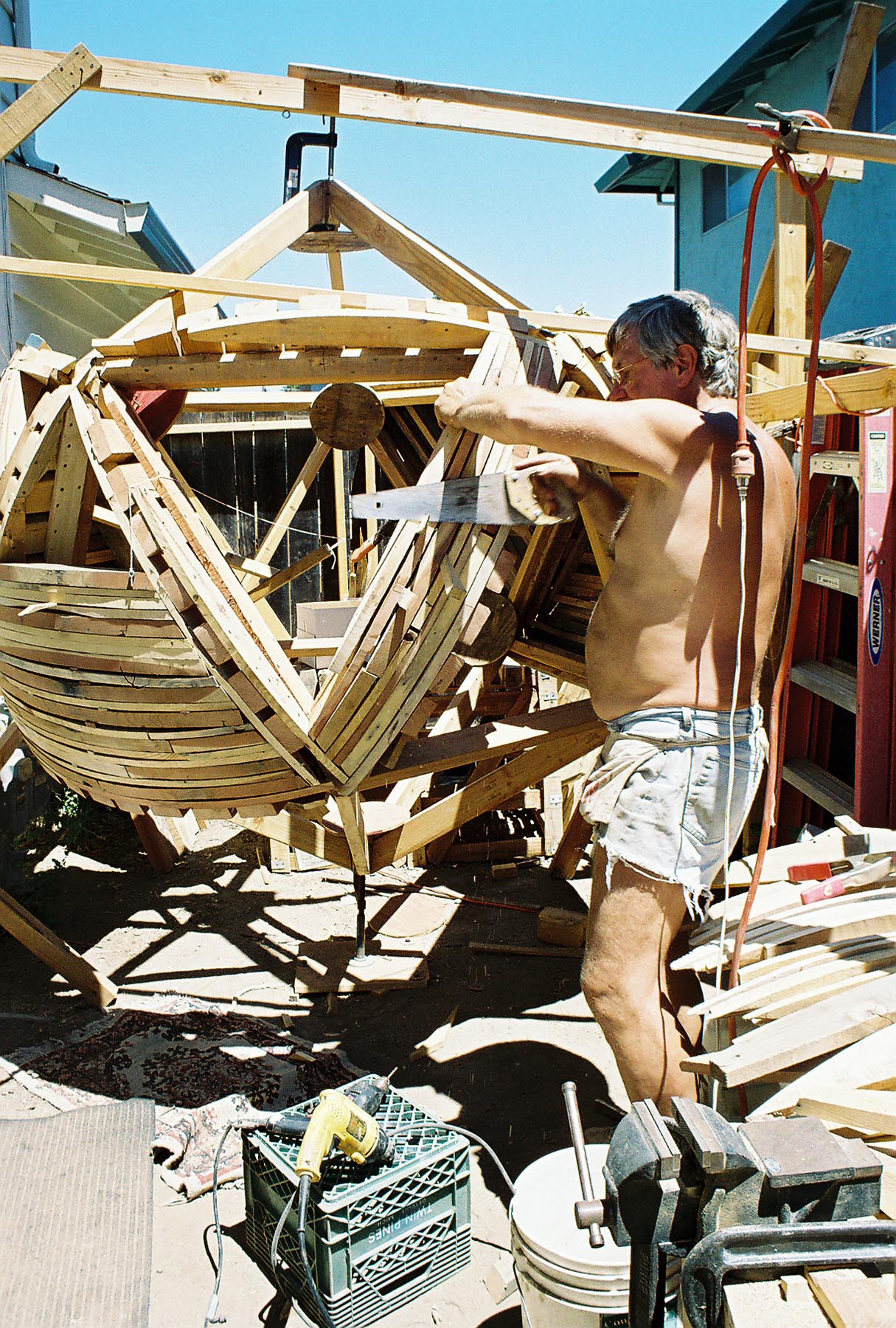

The ball is getting heavy! I added some fixed supports to keep the stresses from breaking the supporting structure as I jerk on it as I work.
med | big | huge

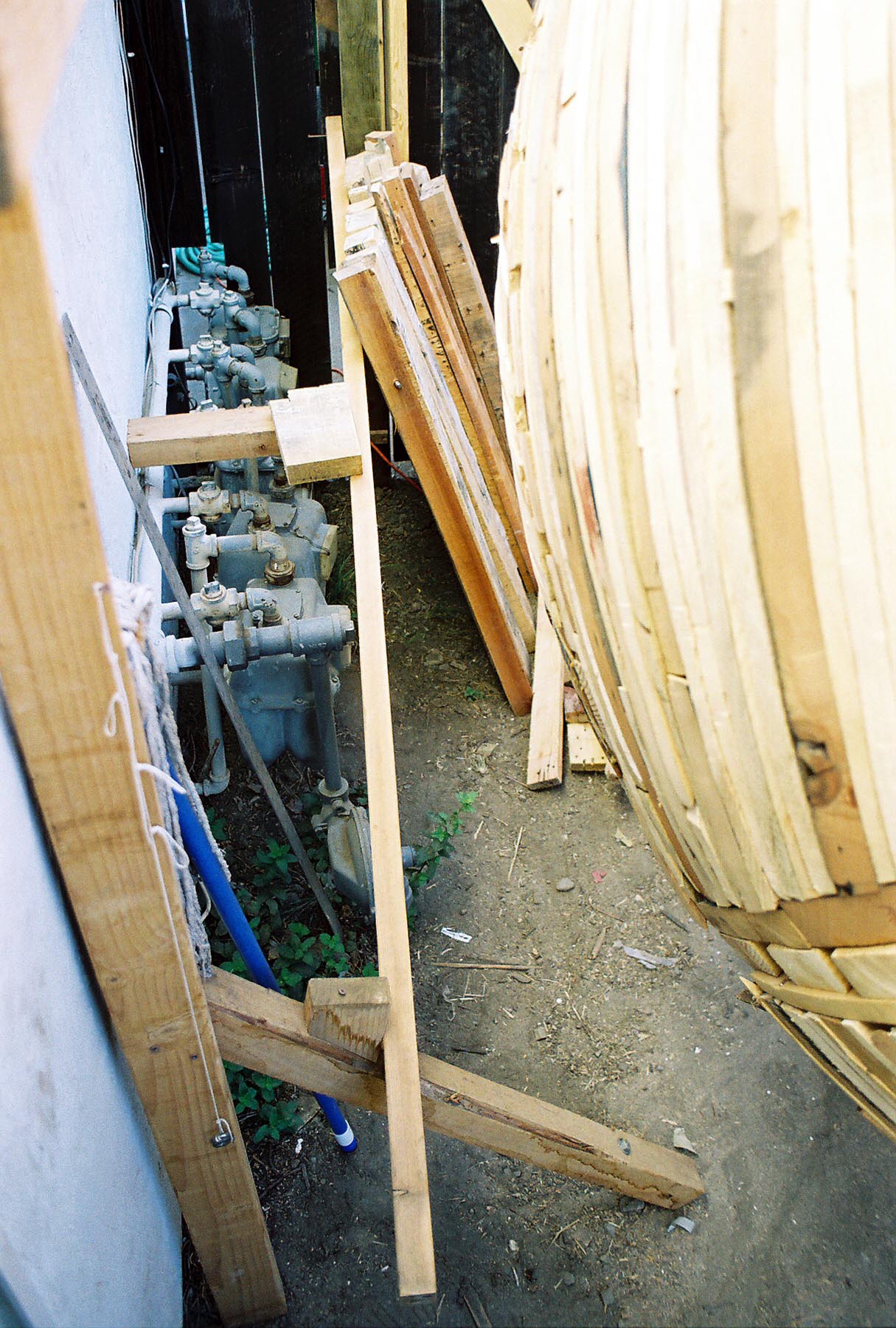

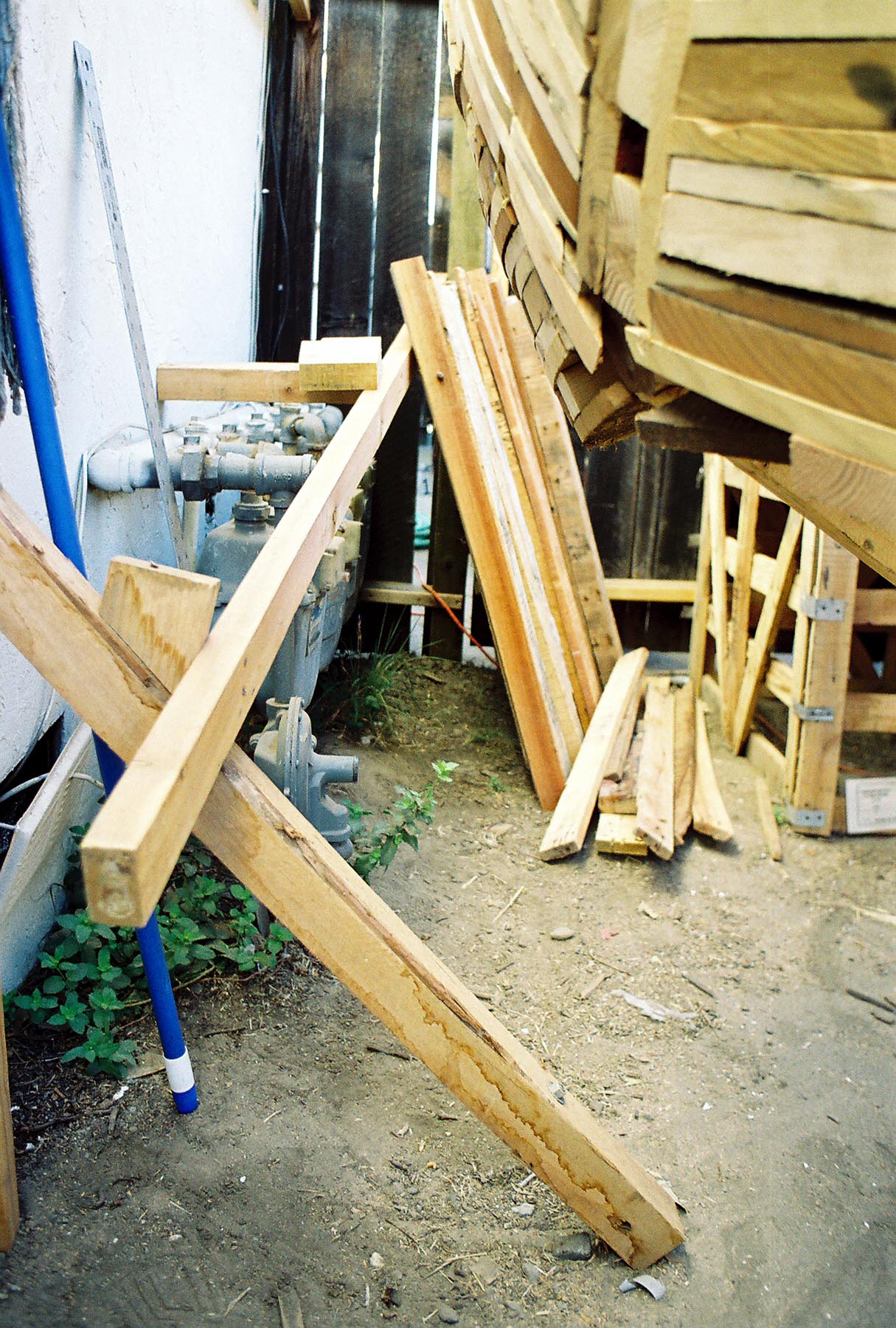

I'm building this right next to the gas meters for the 4-plex I live in. This barrier is to keep a disasterous collapse from turning into a disasterous fire.
med | big | huge
med | big | huge

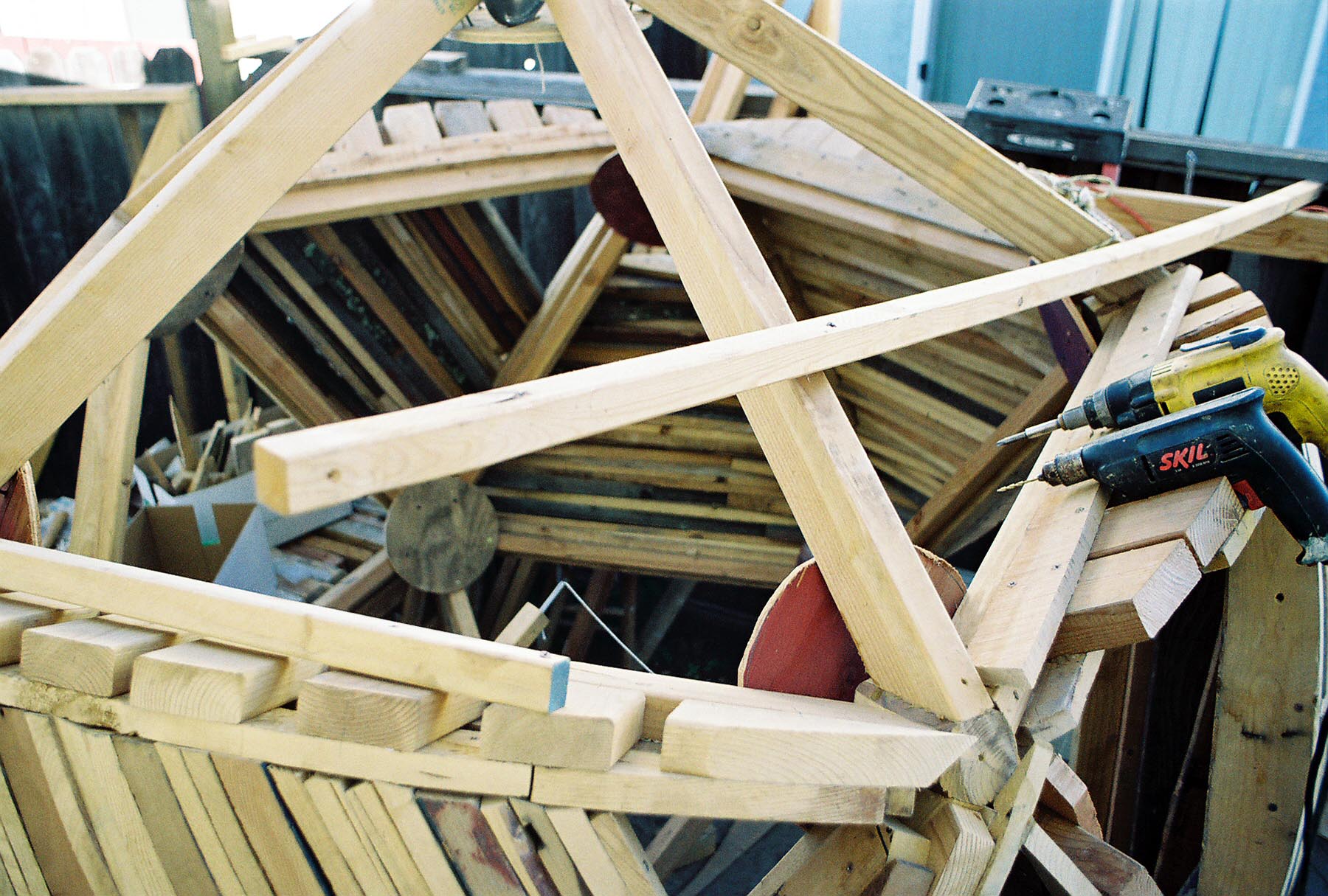

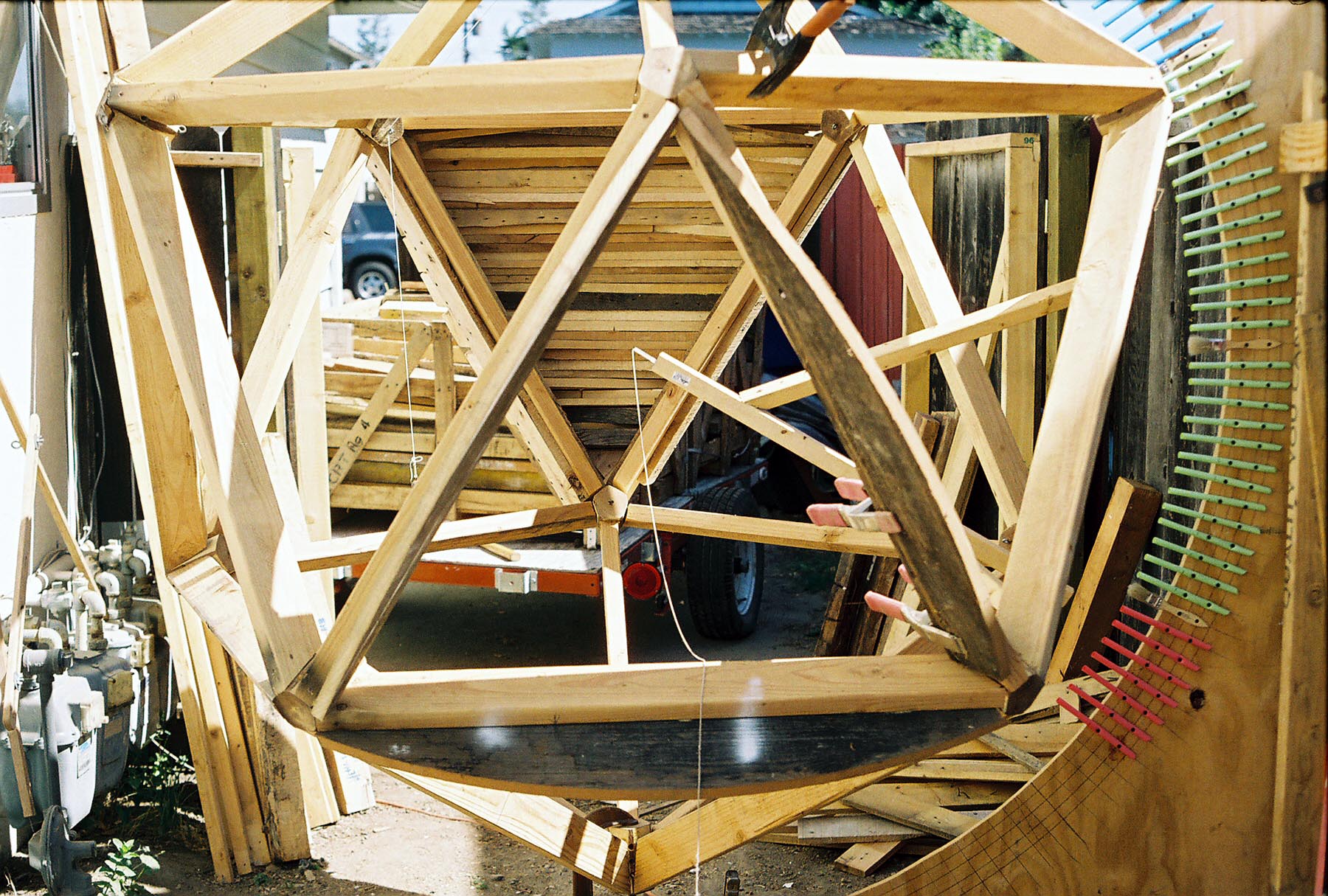

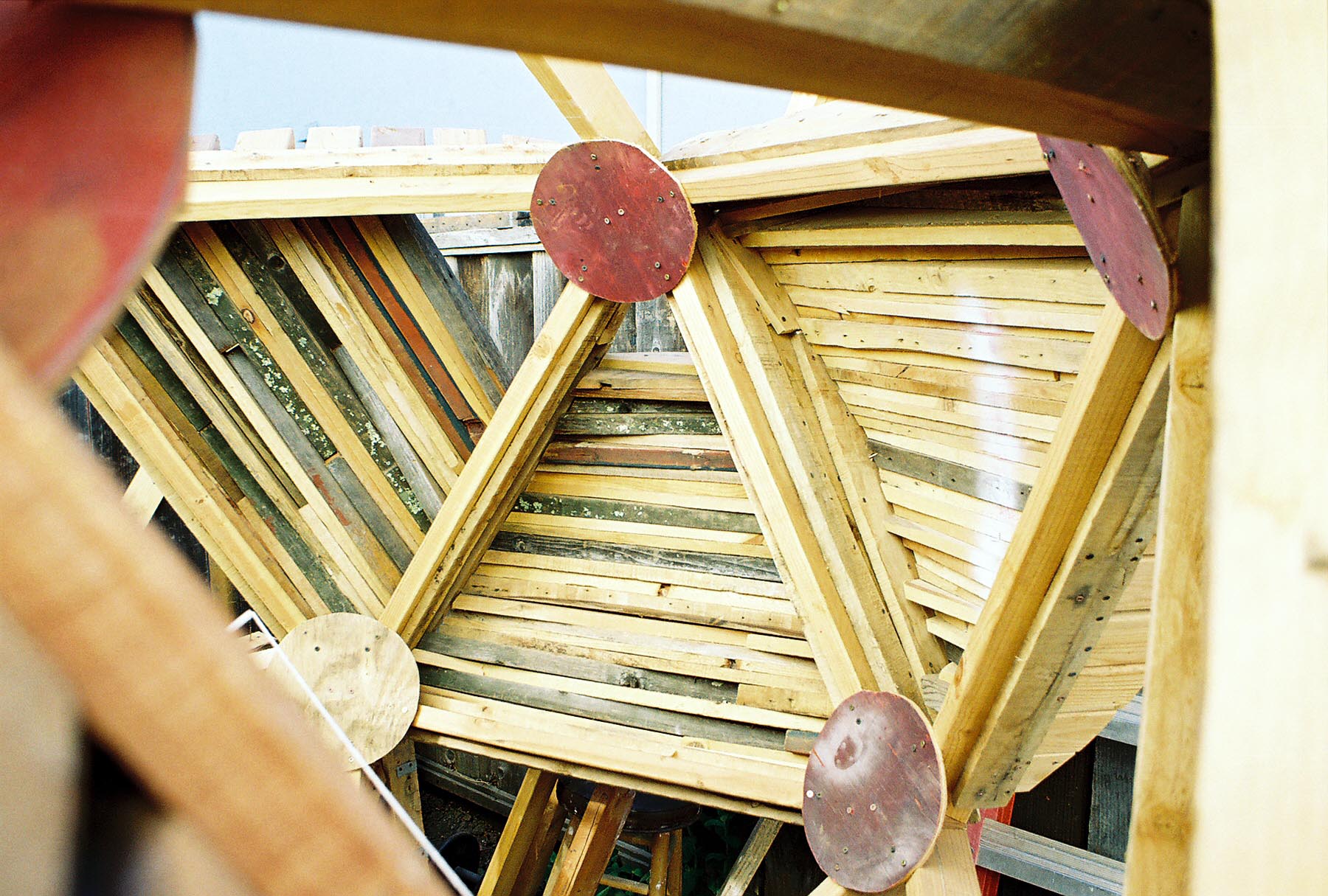

The view inside of the ball.
med | big | huge

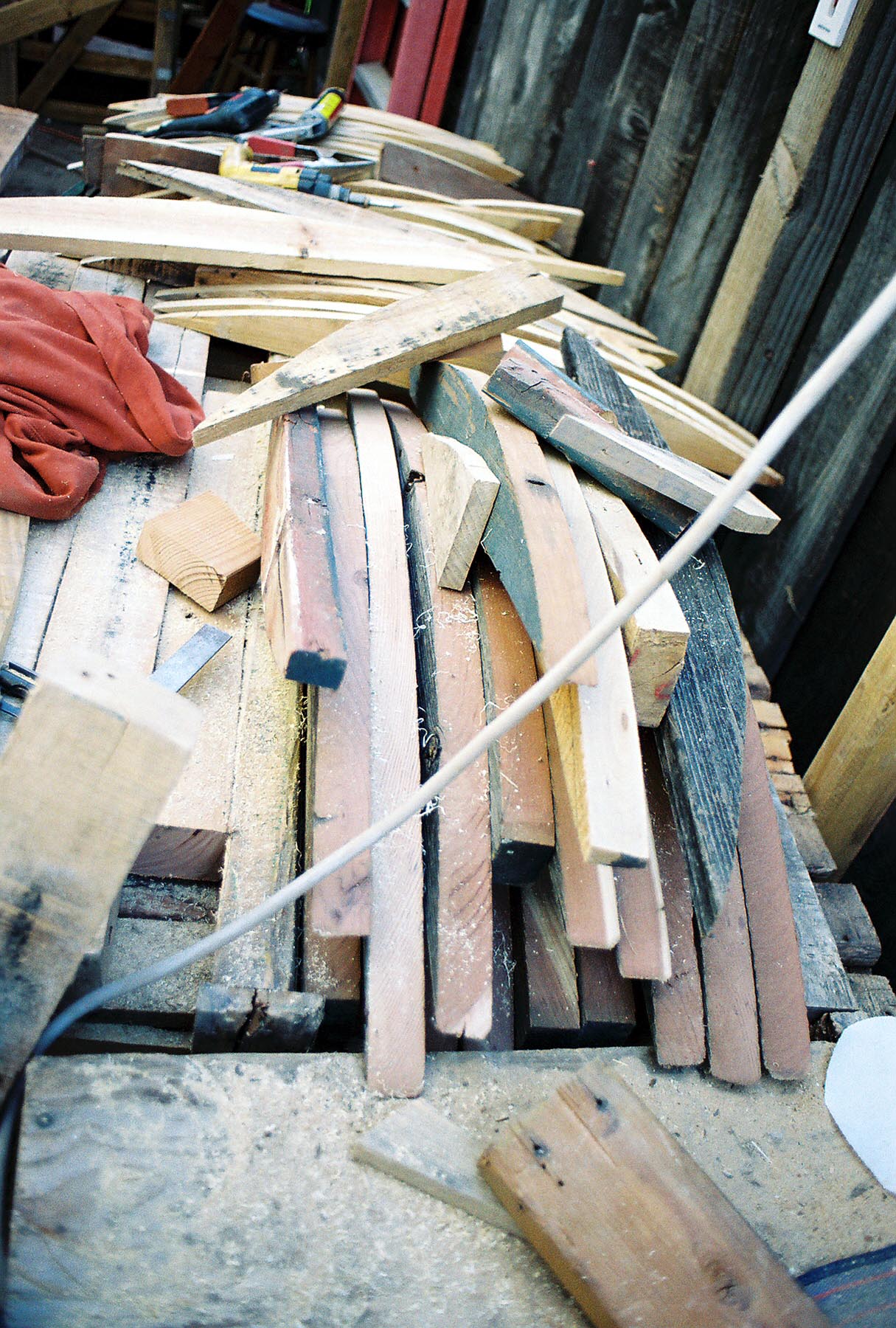

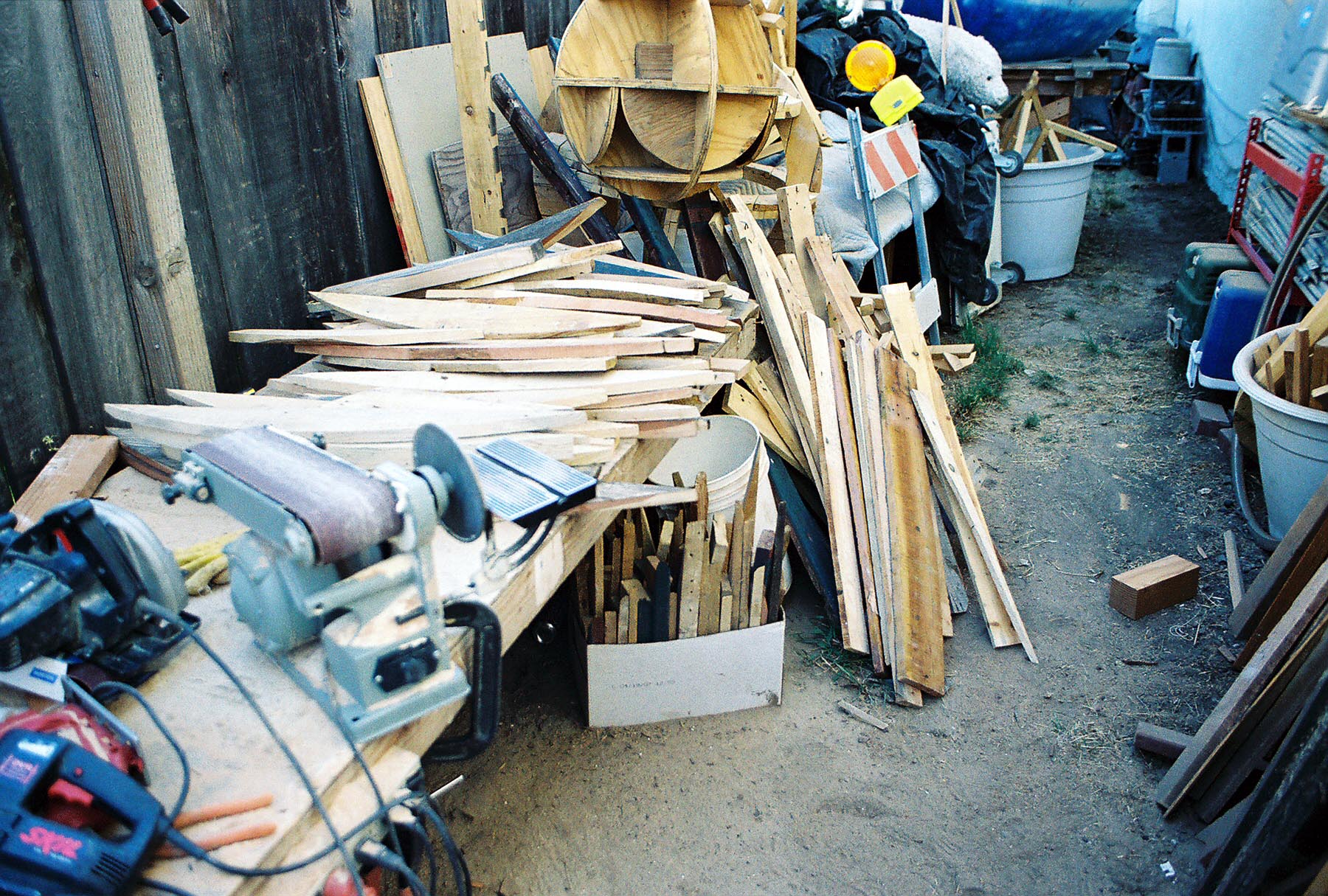

More piles of wood.
med | big | huge

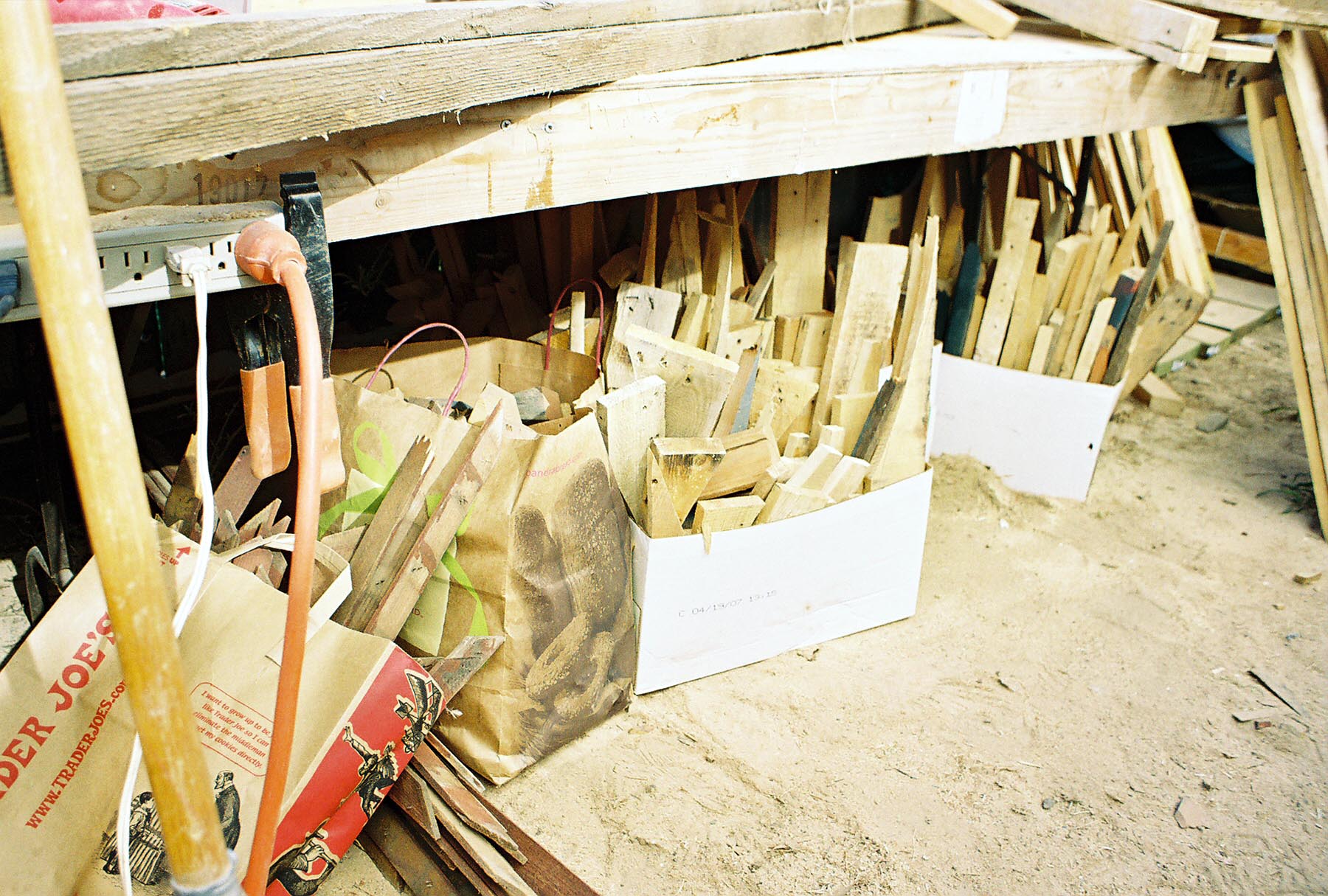

Man! am I making a lot of good scrap wood for someone's burn barrel!
med | big | huge

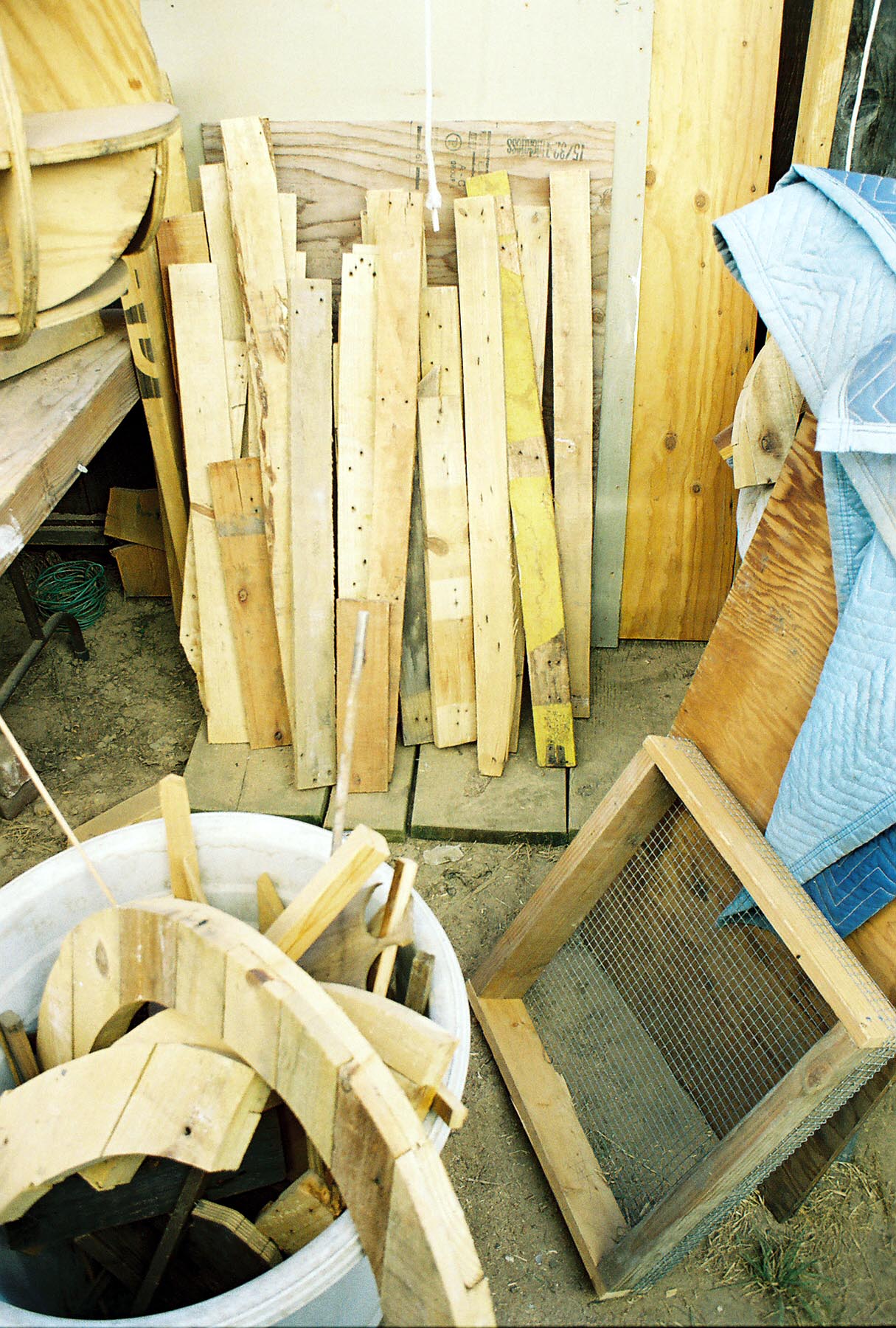

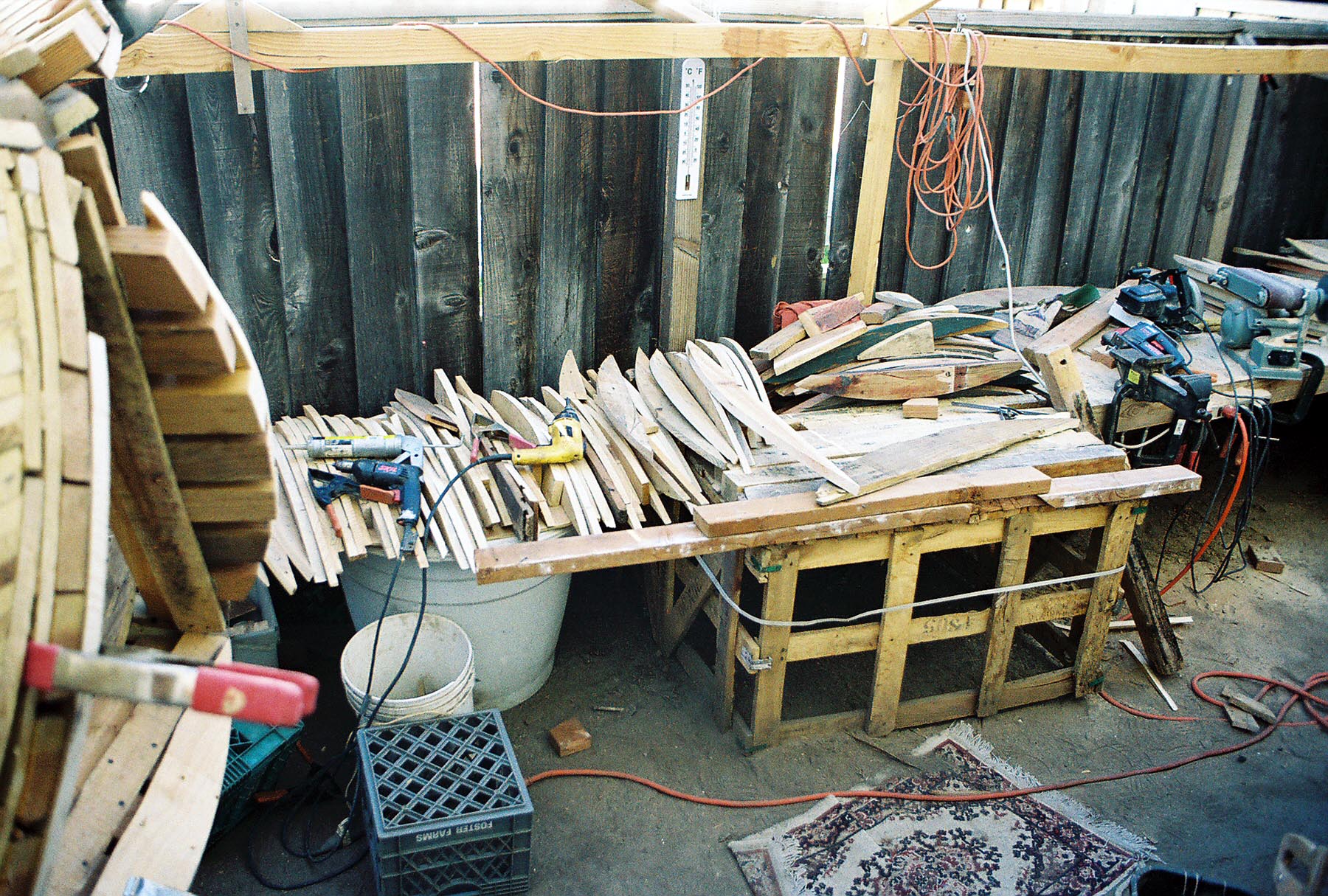

Everywhere are stacks of wood. The wire screen is helpful in seperating the wood scraps from the mounting piles of sawdust that I'm generating.
